Vessel Ionizer-Fan Type F6CL-E (with clip)


No.F6CL-E Ionizing Mini-Fan with Clip


●Ionizing method: Piezoelectric high-frequency AC corona discharge.

●Featuring a compact, lightweight design. Compact fan-shaped ionizer.

●Interior LED light lets you check for dirt on the electrode needles visually.

●By detaching the louver, the needles can be easily cleaned. Automatic shutoff for electrode over the needles.

●Comes with a clip for easy installation. The unit can be flexibly installed on a cell-production stands or desks at most appropriate angles.

●Warning indicator notifies you if the fan locks up or abnormally high voltage is detected. LED lamp notifies you in case of abnormalities. Also, its safety mechanism automatically stops the fan and ion generation when the louver is taken off.

 Specifications

Ion Generation Method
 High Voltage AC Corona Discharge
Output Voltage
 AC 3.5kV
Input Voltage
 DC 24V  ±5% 253mA (typ.)
Dimensions
 NO CLIP: 5.1"x3.1"x3.2" (131x77x81mm) H x W x D
Weight (with CLIP)

 1.1 lbs (514g)
Fan Speed
 HI: 0.87m3/min (max) / LOW: 0.4m3/min
Noise Emission
 HI: 58.5dB / LOW: 40.4dB
Ozone Generation
 0.05ppm or less (measured at 1.97" / 50mm in front of unit)
Working Temp. Range /
Working Humidity Range
 41~104°C / 35~65% RH (no condensation, no freezing)
 5~40°C / 35~65% RH (no condensation, no freezing)
Distance from Target
 5.9"~23.6" (150~600mm)

Static Eliminating Time
 See PERFORMANCE
Ion Balance
 Within ± 10V (measured at 11.8"/300mm from device)
Replacement Parts

 See ACCESSORIES










W H D Weight EDP No.



(clip included)
mm mm mm g
77 131 81 514 621632








※The above measurement does not include the clip and other protruding parts.
・Power supply:DC24V±5%
・Current consumption:253mA (typ.)
・Noise level:58.5dB〔Fan speed: HI〕 40.4dB〔Fan speed: LOW〕
・Fan speed:0.87m3/min〔Fan speed: HI〕 0.4m3/min〔Fan speed: LOW〕
・Accessories:Power supply transformer №AD24-ITF6  AC cable(1.8m)
Power Supply

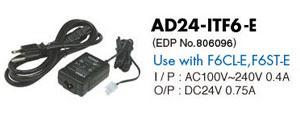

AD24-ITF6-E Power Supply for F6CL-E Static Elliminator

●Static erasing performance


Charged plate monitor:TREK 158, which conforms to ANSI EOS/ESD S3.1, was used for measurement.
Measurement conditions: Max. fan speed,
Temperature: 25℃, Humidity: 50%

Top: Ion balance
Middle: Decay time required for static discharge from +1000V to +100V
Bottom: Decay time required for static discharge from –1000V to –100V

※Static electricity erasing capability values given in this catalog were obtained in our
measurement environment. Your results may differ depending on the operating environment.

========================================================
notes:

1. From Vessel website :
No.F6CL-E /F6ST-E Ionizing Mini-Fan(10/12/10)

Developmental background
The first of its kind worldwide, VESSEL first developed the fan-type static electricity elimination equipment SDJ-08 in 2003, featuring easy installation with a "clip." Especially in cell production systems, this equipment has become an essential part of the production process. The clip installation method allows for the static electricity removal device to be attached to a pipe on cell production benches, providing an ion blow on the worktable underneath the device. The special characteristics of the equipment are its space-saving aspect and reliable static electricity removal.The successor to the original model, the F-6 series is composed of mini-fan static electricity elimination equipment featuring a compact design with a miniature piezoelectric transformer and interior LED lights installed to visually check for dirt on the electrode needles and the general operation situation. The F-6Cl model can be easily installed on a pipe on a cell production bench, and freely pointed in any orientation or angle desired due to its clip type attachment method. In addition, the F-6ST model, which comes with a low-cost table stand, is on sale at the same time. This equipment provides superior static electricity elimination performance through the use of a piezoelectric transformer that provides for long-range ionization and a powerful high-speed fan.
Description
・Compact and light mini-fan type static electricity elimination equipment.
・Equipped with a clip, the F-6CL model can be easily attached to a pipe on a cell production chassis or the side of a desk or table.
・The F-6ST model is equipped with a desktop type stand for use on a worktable.
・Equipped with screw holes on three sides of the device, the stand or clip can be removed for compact installation on equipment or jigs.
・During operation, the interior light (bright white LED) shines brightly and lets you easily check for dirt on the electrode needles or check the general operation situation.
・Maintenance and removal of the electrode needle unit can be easily conducted without any special tools.
Features
・Highly reliable piezoelectric AC method employed, providing superior ion balance (within ±10V).
・Compact and space-saving, ideal for installation on cell production benches.
・Equipped with screw holes on three sides, for compact installation on equipment or jigs (M5x0.8 screws at 3 locations).
・Fan speed can be switched to either a HIGH or a LOW setting.
・Equipped with a compact and powerful "high-speed fan," performance loss is minimized even if the filter gets dirty.
・The interior light (bright white LED) shines brightly during operation allowing you to easily check for dirt on the electrode needles or check the general operation situation.
・Equipped with a warning lamp, which notifies you if the fan locks up or abnormally high voltage is detected.
・Low voltage 24V DC power supply minimizes electrical leakage and interference with nearby devices.
・The louver (electrode needle unit) can be attached or detached and the needles can be easily removed.
・The highly efficient ionizing design method minimizes ozone production.
Main usage
ESD measures for electronic components in trays on a cell production bench, prevention of static electricity for resin parts, and the prevention of detachment in the presence of a static electric field, etc.The prevention of static electricity during work on conveyor lines in production facilities and the prevention of detachment in the presence of a static electric field, etc.Semiconductor production plants, the manufacturing of electronic equipment, the manufacturing of precision machinery, production in the food industry, the production of packing materials, printing, painting, and the production of pharmaceuticals, etc.

Accessories:
F-6H Electrode Needle Unit for F6CL-E Static Elliminator








Electrode Needle Unit
 Power Supply



 =================
notes:
1. actual photos:



 2. you can clip the Vessel F-6CL ionizer anywhere conveniently just like this similar to Vessel SDJ-08


Vessel Static Eraser Gun G7-R





Vessel G7R-E Gun-type Ionizer


●Ionizing method: Piezoelectric high-frequency AC corona discharge.

●Electrode needles: Tungsten.


●Compact, lightweight plastic body incorporates an ergonometric grip that fits the hand comfortably.


●Includes LED illumination to make dust visible as well as a convenient hook for hanging the device up.

●Various tip attachments are available for use in a variety of applications.

●Safe design features a built-in piezoelectric transformer.

●Electrode needles can be easily cleaned and replaced using Electrode Needle Replacement Screwdriver, G-7DR (separately sold).

●Both sides of the grip incorporate an operating LED and high-voltage malfunction alarm LED, allowing the user to check on the gun’s operating status at any time.











W H D Weight EDP No.





mm mm mm g
105 150 36 198 621621





・Applied voltage:AC2.3 kV

・Power supply: 24 VDC ±5%

・Current consumption: 100 mA (max. when using LED illumination)

・Air supply pressure:0.1 MPa to 0.6 MPa

・Air supply hose diameter:6 mm × 4 mm

・Airflow:202 L/min (at 0.3 MPa)

・Noise level:84 dBA

・Ion balance: Within ±10 V; Decay time: 0.5 sec or less

(150 mm from surface, 0.3 MPa, Standard Nozzle)

・Static erasing area


Accesories:

Power supply transformer No. AD24-ITC-E

Standard Nozzle (G-7SN)

==========================================

Replacement & Optional Parts for Vessel G7-R
