HANSTAR HS-001G DC MINI IONIZING AIR BLOWER 24VDC



HANSTAR HS-001G DC MINI IONIZING AIR BLOWER

DC24V

HANSTAR MINI-IONIZER HS-001G   HS-001G DC ionized air blower produces an air flow that is rich in positive and negative ions. Directing the air flow on an object that has static electricity charge will neutralize the charge. If the object has a negative static charge, it will draw positive ions from the air flow. Conversely, if the object has a positive static charge, it will draw negative ions from the air flow. The air ions are attracted to the oppositely charged object and neutralize the charge on the object.   The HS-001G was designed for use with sensitive electronic components, where electrostatic discharge is a problem. The HS-001G can also be used where static electricity causes problems such as: attraction of dirt to product, misalignment of small parts due to electrostatic “jumping” and undesirable adhesion of plastic films due to electrostatic charge

SPEC.

Operating Voltage(操作电压) 110V/60Hz or 220V/50Hz Current Consumption(输入电流) 0.05A or 0.03A Limited power(功率) ≤30W Air velocity(出风量)   50-110CFM Operating Temperature(操作温度) 0℃-50℃ Air Coverage(气流面积) 300mm×300mm Weight(重量) 1.4kg Size(外型尺寸) 140(L) ×80(W) ×190(H)mm Ion Balance(离子平衡) 0V±10V

测试结果 TEST RESULT

Decay Test Conditions (测试条件) Operating Voltage (操作电压)：4.6kv        Testing Voltage(测试电压)：1KV to 100V Temperature（环境温度）：22℃ Distance（距离）   300mm 600mm 900mm Decay time (中和时间) Positive(正) 1.0s 3.4s 7s Negative(负) 0.9s 3.5s 8s Offset voltage  (残余电压) Positive(正) 2V 1V 4V Negative(负) 2V 1V 3V

Remarks: 1. The test value according as ME268A static tester.

        2. The test value will be changed by the temperature & humidity of condition.

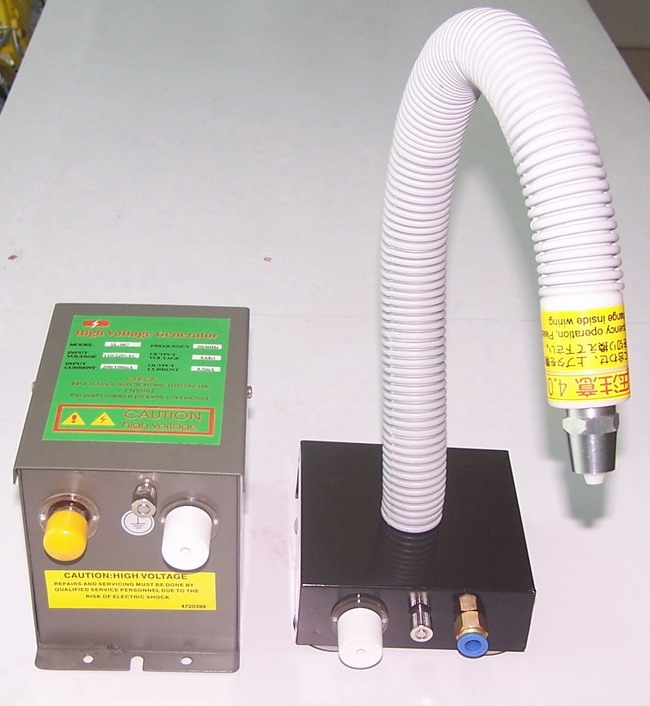

Ionizing Air Snake Hanstar 080A





Ionizing Air Snake Hanstar 080A set

Lagunastar PN. = HS-080A-SET

FEATURES:

1. The body is light and small

2 .Eliminates electrostatic rapidly

3 .Air filter: balance voltage: 0 ± 10V

4 .No air filter: balance voltage: 0 ± 30V

   (Passed ESD STM3.1- 2007; IEC 61340-5-1 standard)

5. It is a hand free, flexible ionizing nozzle that can be positioned to produce clean ionized stream to a targeted surface

6. Powered by the air flow controller

7. It can be placed anywhere

8. Includes SL-007 power supply for operation



SPECIFICATIONS:

1. Operating voltage: 4.6kV  (SL-07)

2. Current consumption: 0.35A

3. Operating temperature: 0 – 50 deg C

4. Weight: 0.7kg

5. Length of hose: 33cm

6. Material: polypropylene flexible hose

7. Air flow: 0.8SCFM at 10psi, 5.5SCFM at 50psi, 11.5SCFM at 100psi

8. Air pressure: 5 - 70psi

9. Air velocity: 10m/second

10. Discharge time (5,000 - 500V at 15cm): (less than) 2 seconds

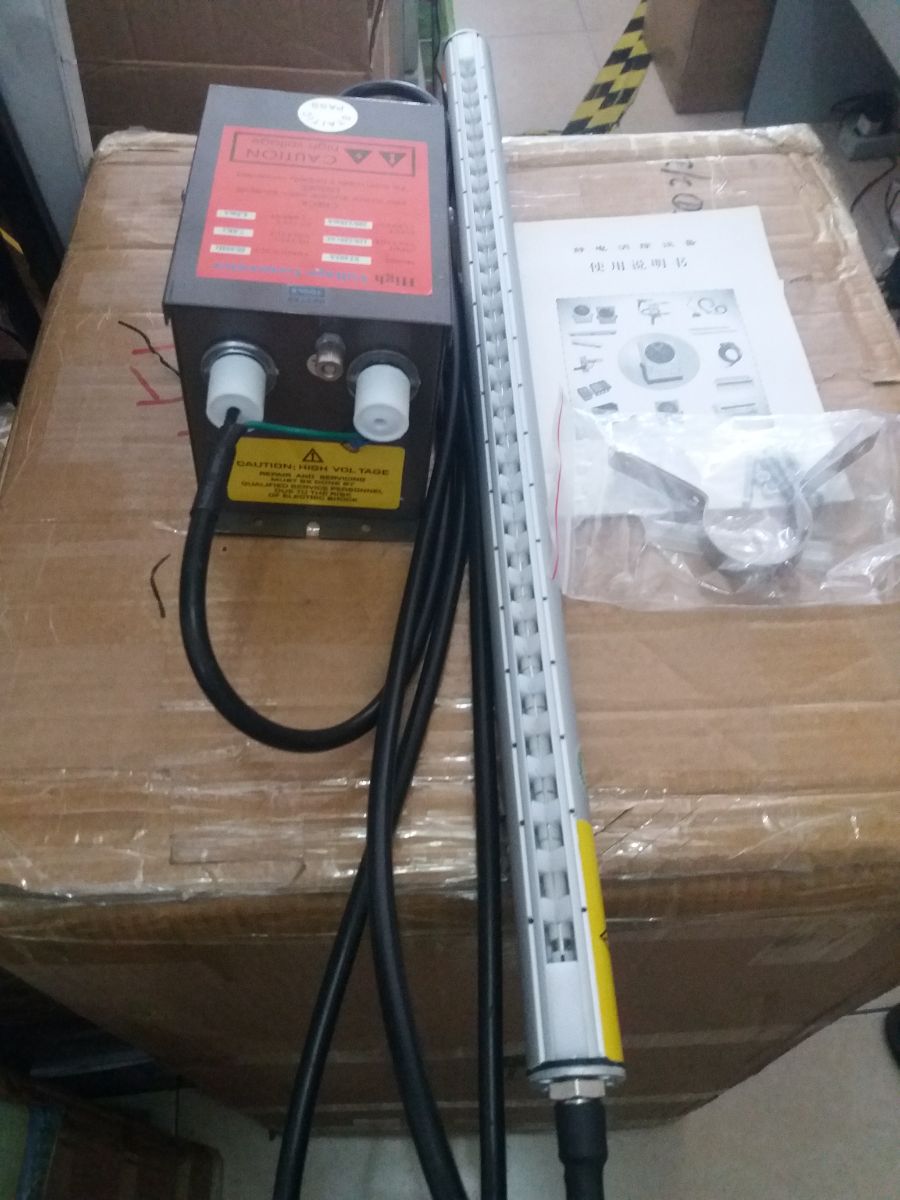

Hanstar -6000 IONIZING AIR BAR

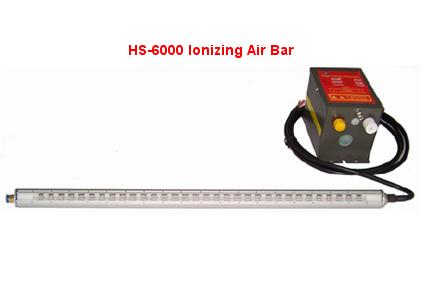

HANSTAR HS-6000 Ionizing Air Bar

Lagunstar PN= HS-6000-SET

HS-6000 IONIZING AIR BAR It produces ions with high velocity air to neutralize the static charge. Ionizing points are cased in a rigid aluminum bar. Its rugged construction allows it to have excellent performance on removing contamination and neutralizing static charge.

It requires our power supply for operation. Operating voltage= 5.6KV Current = 0.36ma/M Operating temp.= -10～50℃ Coverage range= 90cm*180cm Wind volume= 70-120CFM Fan noise = 52-64dB@60cm

It produces ions with high velocity air to neutralize the static charge. Ionizing points are cased in a rigid aluminum bar. Its rugged construction allows it to have excellent performance on removing contamination and neutralizing static charge. It requires our power supply for operation.

Ionizing air bar has a windpipe inside with large air flow which can neutralize ions quickly, hard aluminum crust covers the ionizing needle. Beautiful appearance. For long time for using.

Features:
Anti- static ionizing air bar supports large air flow to eliminate the static, and prevent the static from sticking to the objects by a ionizing air bar though air pump which blow the ions to objects' surface directly.

1. Anti-static, 1power supply 2 bars

2. Without electric shock by design.

3. Optional accessory with squeezing tube.

4. Must accessorize with 5.6kv power adapter.

The bar length = 60cm
Weight = about 5.5 Kg/set
