Dec 1, 2011

Black Dissipative Finger Cots




Black Dissipative Finger Cots also known as Black Conductive finger cots or Mask Black finger cots are made of 16 mil natural rubber latex. These finger cots are powder free and are durable. They are ASTM-3772, ASTM D257 and MIL-STD-81705B compliant. Rough surface provides better grip and anti-slip properties. 100 pieces/bag.

Applications: Class 1000 operation, Electronic Assembly, Photonics, Pharmaceutical, Medical and Semiconductor firms.

Anti static

Yes

Powder-free

Yes

Quality standard

MIL-STD-105E

Surface Resistivity

<1010 Ohms/Square

Tribo charge

<20 volts

Tensile Strength

20 MPa Mnm.

Cot style

Rolled

Length

2.6” long (65 mm)

Thickness

4 mill (0.12 mil)

Size

M, L, XL

Package

1440 pcs / bag

Nov 8, 2011

Finger Cots



1. PINK ANTI-STATIC FINGER COTS

The main material is latex, Static electricity protection compounds and the antioxidant are added, which could effectively protect the microcircuit and the precision electronic instruments. Powder-free anti-static properties. Special washing process to eliminate ionics, residues, particles & other contamination

PINK ANTI-STATIC FINGER COTS
1.certificate:CE\SGS\REACH6\REACH-SVHC30
2. thickness:0.24mm(+-0.02mm)
3.length:70mm(+-5mm) 4. Powder free 5. Ave. Surface Resistance: 10e8 ~ 10e10 ohms/
cm2 6 .Tribo charge <20 volts 7 .Average Tensile Strength 20 MPa Mnm

Anti Static Finger Cots or ESD Finger Cots also known as Pink anti static finger cots are commonly used in the electronic assembly, photonics, watch making, semiconductor, medical and pharmaceutical manufacturing. Anti Static finger cots are Powder Free and are made of 100% latex material. These finger cots meets MIL-STD-105E for holes, tear, stains and Electrostatic properties.

Packing: 1440 Pcs (10gross)/bag or 1000pcs/ bag

Available size = Medium


Finger Cots
Pink Anti-Static
Medium , 1 bag = 10 gross = 1,440pcs
origin = South Korea
brand = Dura Cots

Sep 26, 2011

HANSTAR 946A


Hanstar 946A
Plate size = 200 x200 mm
Digital read-out
Easy to use
Plate is made of Aluminum (thickness=2mm)
Temperature range is 50-350deg.C
850W
Hanstar-946A Microcomputer Temp-controlled Heating Board is made from high quality integrative aluminum alloy, heat well-distributed, and won't deformation at high temperature. The heating board is controlled by CPU, accurately operate. It can automatically judge faults. CPU control temperature, very accurately * Easy to operate, auto judge fault
  • High thermal efficiency, heating rapidly. * Board made from aluminum alloy, heat well-distributed * Won't deformation at high temperature








 =============
Notes:
1.
about the Hanstar 946A hot plate- pre heater. this is very good quality & very fast heating. unlike the old models which takes few minutes to heat up, Hanstar 946A just need some few seconds to heat up.

but Hanstar 946A is a production tool , & not a scientific measuring tool. its LCD temperature display is just a guide & temperature controller.

also, because of the design of the heater, the center area of the plate will be of the highest temperature while the sides are a little cooler by about 5- 15 deg C. for example, the most center area's ( pinakagitna) actual temperature can be 260deg C, while the remaining side areas are about 245- 250 deg C only. if used in the production, depending in the application,  this 15 degC Difference is negligible,

but if the end-user will put small items only, & their application needs very uniform temperature across the hot plate, usually clients just avoid putting item in the most center area.

The end-user can also adjust its temperature display using the "calibration hole" near the temperature display.


May 19, 2011

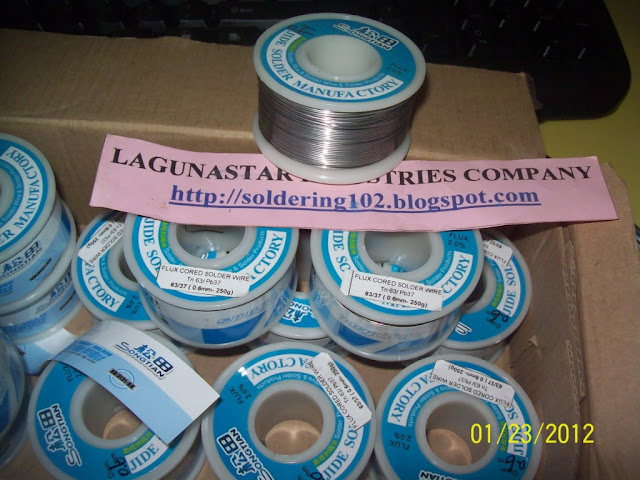

Solder Wires- with Lead 63/37






Songtian 63/37 0.6mm-250g


LEADED SOLDER WIRES are also available
Brands: Keyida / Songtian
63/ 37
Flux: 2.2%
Available Dia: 0.6 , 0.8, 1.0mm
Available Weight = 250 g, 500g spool

very good quality 63/37 solder wire


SONGTIAN 63/37 solder wire.

63/37 are flux cored solder wire (not lead-free), they consist of 63% tin and 37% lead.
They are Eutectic , with melting points of 183 deg C.


Eutectic - a minimum-melting composition of 2 or more components,
each of which melts and freeze congruently forming a mixture of the component crystals during crystallization.



============
notes:
1. same price,same materials & same quality lang ang Keyida & Songtian 63/37 solder wires
2. better quality ang 63/37 kesa sa common 60/40 solder wires.
3. it is already flux cored so me flux na din siya sa gitna ng solder wires, so for usual application, ok lang kahit wala ng flux or flux paste.

Lead-Free Solder Wire- RoHS













LEAD- FREE SOLDER WIRE
Brands: Keyida , S & T ( J & D), Songtian, Jide Soldering
ROHS compliant
Sn/ 0.7Cu
Flux: 2.0% to 2.5%
Available Dia: 0.6 , 0.8, 1.0mm
Available Weight = 500g spool, 800g spool
===========================================================
Lead- Free Solder wires
Sn/0.7Cu/ 0.3Ag is also available (0.6mm at 500g spool only)
Flux: 2.2%

May 16, 2011

CHEERMAN ThermoHygrometer DT-8260




μ??÷2é?′?ê??D??¢...
INFRARED THERMOMETER(Mini Type)
-50℃ ~ 260℃
INFRARED THERMOMETER(Mini Type)
INFRARED THERMOMETER(home type)
Product Readme
◆ Temperature Range -50 260
-58 500
◆ Accuracy ±2% or 2
◆ Distance Spot Ratio 2:1
◆ Emissivity 0.95
◆ Response Time & Wavelength 500ms & (8-14)um
◆ Repeatability ±1% or±1
◆ Resolution 0.1 or 0.1
◆ ℃/℉ Selection
◆ Data Hold Function
LED Lighting Selection
◆ Auto Power Shut Off
◆ Low Battery Indication
GENERAL CHARACTERISTICS
◆ Power 2pcs AAA Battery (1.5V/each)
◆ Product Color blue/white/red/green/grey, etc
PACKING INFORMATION
◆ Size 95*45*28mm
◆ Net Weight 65g

Infared thermometer (High Temp) Cheerman DT-8011T


Temperature Range -50 1100

-58 2012

Accuracy ±2% or 2

Distance Spot Ratio 12:1

Emissivity 0.1 to 1.0 adjustable

Response Time & Wavelengt 500ms & (8-14)um

Repeatability ±1% or±1

Resolution 0.1 or 0.1

Avg/Dif Temperature Measurement

Max/Min Temperature Measurement

High/Low Temperature Alarm Setup

/ Selection

Data Hold Function

Laser Target Pointer Selection

Backlight Display Selection

Auto Power Shut Off

Low Battery Indication

       GENERAL CHARACTERISTICS

Power 9V Battery

Product Color Yellow + Grey

Probe Thermometer TP-3001









Digital Thermometer TP-3001
"STAB THERMOMETER ", or acts as Meat Thermometer, can also used in many application such as soil thermometer, or laboratory thermometer, or any application that needs a probe or contactTemperature Range -10deg C300deg C14deg F572deg F
Temperature Accuracy ±1%
/ Selection
Power 1.5V Battery
data-hold function √ Product Color Black
APPLICATION= FOOD or Any Contact Temperature Reading

CHEERMAN ThermoHygrometer

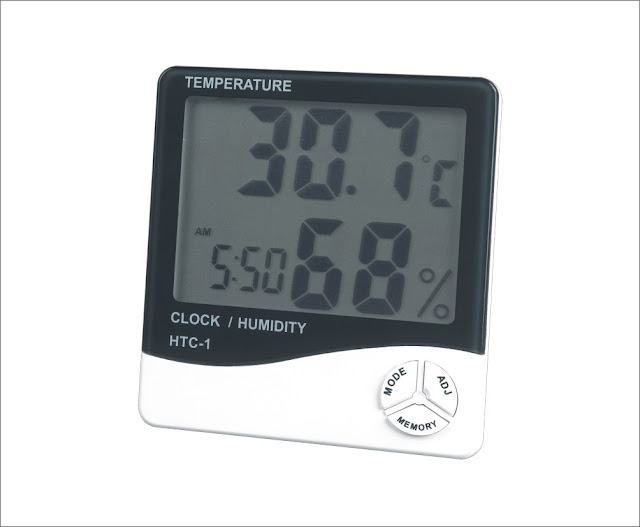

1. Clock/Humidity HTC-1
Lagunastar SKU= CHEER-HTC-1








      it is easy to use:  read the data accurately....
  • Large LCD Display shows Temp, Humidity & Time at same time. Total LCD size: 80 x 60 mm
  • Temperature and Humidity displayed in HUGE 1" high numbers.
  • MAX / MIN Humidity & Temperature are recorded automatically and can be reset by user
  • Fahrenheit or Celsius readout (changeable by selecting F or C on back)
  • 12 or 24 hour time modes (changeable by using MODE & ADJ button to set)
  • ALARM function , MONTH & DAY display available by pushing ADJ button
  • Integrated back stand for desktop or table use OR hanging hole for wall mounting
  • Power: ONE standard AAA 1.5v Battery (included)
  • Ideal for home, office, travel and school
Large LCD, Low Power

Temperature Range -10deg C+50deg C14deg F122deg F
Temperature Accuracy = ± 1 deg C , ± 1.8 deg F


Humidity Range 10%RH99%RH
Humidity Accuracy ±5%
Display Tem.Humidity Simultaneously deg C/ deg F Selection √
12-hour/24-hour time system selectable Alarm Function √
Calendar Function Integral-hour alarm function √
Power 1.5V Battery Product Color White LCD Size 80mm length x 60mm height (wide screen LCD) LCD Display (2 layers) Temperature & Time/HUMIDITY



=================================================================


2. In/out Thermo-Hygrometer HC520
low power consumption lightweight, easy to useIndoor Temperature Range -10C +50C14F 122F
Indoor Temperature Accuracy = ± 1 deg C , ± 1.8 deg F
Outdoor Temperature Range -50C +70C-58F +158F
Outdoor Temperature Accuracy= ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH99%RH
Accuracy ±5%
Display Tem.Humidity Simultaneously √ deg C/deg F Selection √
Separate Indoor/ Outdoor Temp. MAX/MIN value memory √
Separate Indoor/ Outdoor Temp. Value RESET function
Power= 1.5V Battery , Product Color = White LCD Size 52mm length x 36mm height (normal screen LCD) LCD Display (2 layers) TEMPERATURE & HUMIDITY
=========================================================
3. CLOCK/HUMIDITY TEMPERATURE KT-903
super large LCD
Temperature Range -10C+50C (14F122F)
Humidity Range 20%RH99%RH
Accuracy : Temperature = ± 1 deg C , ± 1.8 deg F
RH = ±5%
Display Temperature .Humidity simultaneously √ / Selection 12-hour/24-hour time system selectable Alarm Function √ Calendar Function Integral-hour alarm function √ Product Color White, Power 1.5V Battery LCD Size 65mm length x 90mm height (JUMBO screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY

=======================================================================

4. CLOCK/HUMIDITY TEMPERATURE KT-905
super large LCD
Indoor Temperature Range -10C50C14F122F
Indoor Temperature Accuracy= ± 1 deg C , ± 1.8 deg F
Outdoor Temperature Range -50°C~70°C (-58°F~158°F)
Outdoor Temperature Accuracy
= ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH99%RH , Accuracy ±5%
Display Indoor Temp/Humidity, Outdoor Temp Simultaneously
/ Selection
Separate Indoor/ Outdoor Temp.MAX/MIN value memory
Separate Indoor/ Outdoor Temp. Value RESET function
Product Color White, Power 1.5V Battery LCD Size 65mm length x 90mm height (JUMBO screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY

=================================================================

5. Clock/Humidity Temperature (KT-906)

Temperature Range -10 C +50 C14 F122 F
Temperature Accuracy = ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH99%RH
Humidity Accuracy ±5%
Display Temp Humidity Simultaneously / Selection 12-hour/24-hour time system selectable Alarm Function Calendar Function Integral-hour alarm function
Power 1.5V Battery , Product Color White
LCD Size 40mm length x 60mm height (normal screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY

=-===========================================================
6. In/out Thermo-Hygrometer KT-908

Indoor Temperature Range -10C50C14F122F
Indoor Temperature Accuracy = ± 1 deg C , ± 1.8 deg F
Outdoor Temperature Range -50°C~70°C(-58°F~158°F)
Outdoor Temperature Accuracy
= ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH99%RH
Accuracy ±5%
Display Tem.Humidity Simultaneously √ , / Selection
Separate Indoor/ Outdoor Temp.MAX/MIN value memory
Separate Indoor/ Outdoor Temp. value RESET function LCD Size 40mm length x 60mm height (normal screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY


=====================================================
notes:

1. to know how to calibrate using the "salt test method" click here

http://soldering101.blogspot.com/2012/01/calibrating-digital-hygrometer-by-salt.html

2. ang pinaka- fast selling po namin is the HTC-1 because of its wide lcd and also because this model is the most common of all the hygrometers.

3. yun pong KT-903 & KT-905 is Jumbo size ang LCD display. so ito po ang suggested if malaki yung warehouse or room na paglalagyan.
