Lightmeter TES 1330A / 1332 A








original TES from Taiwan


FEATURES:
  Cosine Angular corrected
  Analog output jack for recording (TES-1332A/1334A)
  Data Hold function, Peak Hold function for 1334

  Specs:

Display
3 1/2 digit LCD
Measuring Range
20/200/2000/20000 Lux (1330A)
  (also Foot-candles for 1334A)
200/2000/20000/200000 Lux (1332A)
20000 lux-reading x 10;
200000 lux-reading x 100
Display
Highest digit of (1) is displayed
Resolution
0.01 Lux (1330A,1334A) & 0.1 Lux(1332A)
Accuracy
+/- 3% rdg +/- 0.5% f.s.(<10,000 lux)
+/- 4% rdg +/- 10dgts (>10,000 lux)
(calibrated to standard incandescent lamp, 2856 K)
Repeatability
+/- 2%
Temperature Characteristics
 +/- 0.1% oC
Measuring Rate
Approx. 2 times/sec.
Recorder Output
DC 2V/f.s. (full scale) (TES-1332A)
Operating Temperature & Humidity
0o to 40oC (32oF to 104oF), < 70% R.H.
Power Source
one 9V battery
Dimensions
100mm(L) x 60mm(W) x 27mm(H)
Dimension
135mm(L) x 72mm(W) x 33mm(H)
Weight
250g



NOTES:
1. almost same na same lang ang TES 1330A & TES 1332A. sa range lang pinagkaiba.
mas maganda ang TES 1332A kasi yung range nya is up to 200,000 Lux. Kaya nya ring sukatin yung 0-20 na range ng TES 1330A.

2. Instruction Manual,

Digital Thermometer SAMPO DM6801A

Digital Thermometer with Thermocouple Wire type K
 Model no. SAMPO DM6801A







3 1/2 digit -18mm
 LCD Range: -50
~1300  /  -58~1999 ,                      HOLD,/
Measurement is selected by pressing
Dimensions:160L x 79W x 43H(mm)
Resolution
Range
Accuracy
0.1
-50~199.9
±(0.3%+1)
.1
-58~199.9
±(0.3%+1)
1
-50~1300
±(0.3%+2)
1
-50~1999
±(0.3%+2)


====================================
notes:
1. Cross Reference= Bonkote MCA- 900 II

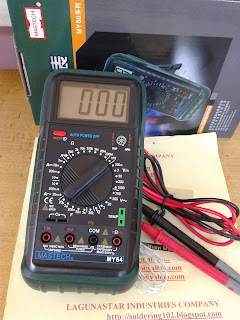

DIGITAL MULTIMETER Mastech MY64











MASTECH MY64

FEATURES
32 Ranges
Large LCD Display
Auto power off
DC voltage: 200m/2/20/200V±0.5%, 1000V±0.8%
AC voltage: 2/20/200V±0.8%, 700V±1.2%
DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
AC current: 2m/20mA±1.0%, 200mA±1.8%, 10A±3.0%
Resistance: 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
Capacitance: 2n/20n/200n/2µ/20µF±4.0%
Frequency: 20kHz±1.5%
Temperature: -20°C ~ 1000°C  ±(1.0%+1)
Continuity checking with buzzer
Diode check: Test current 1.0mA, test voltage 2.8V
Power: 6F22 (9V) x 1
hFE: 1 ~ 1000
Display: 30mm x 60mm LCD
Size: 91mm x 189mm x 31.5mm
Weight: 310g (including battery)

Features

MY64
Data Hold:
Diode Test:
HFE Test:
Continuity Checking With Buzzer:
Temperature:
Display:1999 counts
Auto power off
Low battery indication
Power:                                                                          9V Battery (6F22)
Bottom of Form

notes:
1. Video from a Russian user

2. Meron siyang temperature measurement using the temperature probe TP-01. so very useful siya since you can measure air & liquid temperature. Useful sa pagmeasure ng temperature ng SMD Hot Air Rework station, Heat Gun,  pang use sa HVAC Aircon, etc

Digital Multimeter DT 830D ( Topcraft TDM 600)












Model: TOPCRAFT TDM 600
A practical tool for electrician use.
It is easy to operate and the readings indicated directly on the screen.
It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.

Features:  31 digits, 7segment,0.5"high LCD Display   Max display: 1999, Auto polarity display
 Small and compact design,  Overload protection on all ranges Sampling 2~3 times readings per second.                                  Diode assembly test / Transistor P-N junction test/Transistor hFE test. Low battery voltage indication.  Dimension:125x70x23mm ,        Colour: black

Max AC Current :10A  ,  Max AC Voltage Range = 1000V
Max DC Voltage Range = 750V   , Resistance Measurement:200 Ohm-2000K Ohm range
Scale degree & Accuracy:
Function
Range
Resolution
Accuracy
DC Voltage
200mV
100uV
±(0.5%+3)
2000mV
1mV
20V
10mV
200V
100mV
1000V
1V
±(0.8%+5)
AC Voltage
200V
100mV
±(1.2%+8)
750V
1V
DC Current
200uA
0.1mA
±(1.0%+5)
2000uA
1uA
20mA
10uA
200mA
100uA
±(1.2%+8)
10A
10mA
±(2.0%+8)
Resistance
200O
0.1O
±(1.0%+8)
2000O
1O
±(1.0%+2)
20KO
10O
200KO
100O
2000KO
1000O










 Package included:  1 x Digital Multimeter in box , 2 x Test Leads line (red & black) ,
1 x Manual, 1 x 9V battery.
 Unit net weight:170g ,
