Now Uses SMPS (Switching Mode
Power supply) * Astonished
heating speed - Only within 10-20s to reach 300℃ from room temperature. * Perfect intelligent soldering effects - Sufficient
power varies with the sizes of soldering point.
* Effectively avoid negative impact by cold soldering
etc.
*
Extraordinary heat recovery - Incredible temperature compensation speed can
solve temperature problems occur during lead-free soldering. It is a better tool for lead-free soldering
and lower-temperature soldering. * Extension of life of soldering tips
- Relative lower temperature will largely prolong the
life of soldering tips.
●
Separate Design between heater and
soldering tips. No need to replace the whole unit.
Just replace the worn-out soldering tips or iron for BIG savings.
*
USES 500 SERIES Soldering Tips (i.e. 500-K, 500-5D SERIES TIPS, etc)
* With
anti-static grounding cord with crocodile clip
Applied Function
* Auto sleeping,
energy-efficient, Temperature will lower to 200degC when not in
use over 20 minutes.
When work is needed again,
temperature will reach up to set one rapidly.
*Temperature can be locked by passwords to prevent inadvertent changes.
Specifications:
Power
consumption
150W
Output
voltage / Frequency
36VAC 400KHz
Temperature
range
200
~ 500℃
Input
voltage
110V
/ 220V,
60Hz/50Hz.
Time of temperature rising(20℃-350℃)
Less than 20 sec
Temperature Compensation Speed
Very quick
Heating
Mode
intelligent
Heating
Theory
High
frequency current
Tip
to Ground Resistance
less than 2Ω
Tip to
Ground Potential
less than 2mv
Auto
Sleeping
Yes
Temperature-click
Mode
Password
ESD
Housing
Aluminum
housing
Note:
COMPLETE SOLDERING KIT:
PRICE INCLUDES
SOLDERING IRON, WITH SOLDERING TIP, SOLDERING STAND & SPONGE, anti-static
ground cord with crocodile clip
===
notes:
1. Definitely one of the most powerful soldering station available in the market, for heavy & industrial usage soldering
2. its quality & performance can compete with Weller, Metcal, JBC & other top of the line soldering stations but its price is very low as compared to these well known brand
3. Fast selling among industrial users
4.
keys
functions and the iron setting:
1.Power on: Open the power switch, the acquiescence temperature
is 350℃.
2.Set temperature:
Press the ▲ or ▼ key to set the temperature directly. Or Press the *
key for once, the first digit will be twinkling,
then press ▲ or ▼ to set the value of this digit,
then press * key, the second digit will be twinkling, also please press ▲ or ▼ to adjust
the temperature of this digit, the same operation for the third digit.
3.Mode setting (The highest
temperature setting)
The station
with 3 kinds of highest temperature:
Mode 0 means
that the highest temperature is 420℃;
Mode 1 means
that the highest temperature is 480℃;
Mode 2 means
that the highest temperature is 600℃.
Press ▲ and ▼ together and turn on the power, you can
see “C”, press * the LED will display “___”, then input “000”and press * you
can see “OF”, this time please press the ▲ and ▼ keys together, you can see the mode of
highest temperature: 0 or 1 or 2, please select the mode you want and press *
to save and quit.
4.Temperature calibrating:
When the power is on, and the temperature is
constant, test the real temperature by thermometer (We recommend the 191
thermometer) and write down this value. Keep pressing the * key, and press ▼ ,the station will come
to calibration mode, then press ▲ or ▼ to increase or decrease the value of temperature, press
* key again, the iron will go back to work.
Troubleshooting
guide:
Problem 1: LED no display.! Please check the fuse inside.
Problem2: H-E and no heating.!
Please check the heating element.
Problem3: S-E The sensor was broken! Please replace the sensor or heater.
5.
regarding error display of “O-E “.
How to repair this kind of error for our soldering station

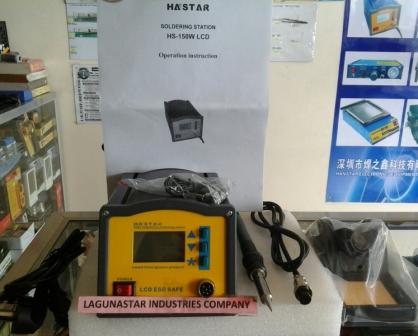

HS-150W.
‘O-E'
means Over current protection, so pls set up the value, then it's ok
for the matter of 150W LCD, pls do as the two ways:
1.change the soldering iron, if ok, that's good,
2.if not, then go into the setting ,
3.how to go into setting= press the UP and *
together, and input the word: JTECH, then you can see the YEAR, POWER, CURRENT
EXIT AND ETC..
4.pls choose the CURRENT and see the value, if
it's 780, then pls set up to 785 firstly and exit
5.if it's still “O-E”, then set value again,
785-790
6.pls adjust up the value, till the station won't
display 'O-E' .
