Hanstar 375A - Soldering Station with Self Feeder

Hanstar 375A - Soldering Station with Automatic Solder Wire Self Feeder

- perfect for lead-free soldering
-the self feeder machine can save one hand's work,no need to use one hand hold the soldering wire (tin wire)
- the end of the solder wire will automatically touch the soldering tip. the solder wire dispenser is controlled by the foot switch.

shipping weight= approx 3.8Kg

HANSTAR 982- Automatic Liquid Dispenser

1 set of Hanstar 982

HANSTAR 982 dispenser
AUTO-LOADING DISPENSING CONTROLLER

Features:

* Uses air pressure to dispense a set amount of liquid at regular intervals;
* Controlled by timer
* Time and volume can be adjusted easily;
* With 10 different size steel tips and 5 various plastic tips.
* Use to dispense different liquids such as glues, greases, solder pastes.

SPECIFICATION：
Power supply： AC 220V±10%/50Hz
　　　　　 AC 110V±10%/60Hz
Power consumption：<8w br="br">Air source：max.0.99MPa
Stress control range：0.05MPa--0.99MPa
Time control range：With switch transiting
　　　　　　　　　　　 0.01S-1S;0.1-10S;0.2-20S;0.3-30S
Function mode：Hand mode/ Auto-loading mode
Minimum dispensing quantity：0.01ml
Size：235mm x 225mmx 63mm
Weight：2.2kg
On the drip switch, can be applied for few types as the following table:
TIMED MODE 0.01s 0.06s 0.016s 0.026s
S1 ON ON ON ON
S2 OF ON ON ON
S3 OF OF ON ON
S4 OF OF OF ON

---------------------------------------------------------------------------
notes:
1.

LIGHTMETER TES 1330A

LIGHTMETER TES 1330A
features:
Cosine Angular corrected
Analog output jack for recording (TES-1332A/1334A)
Data Hold function, Peak Hold function for 1334

Specs:
Display 3 1/2 digit LCD
Measuring Range 20/200/2000/20000 Lux
(1330A also Foot-candles for 1334A)
200/2000/20000/200000 Lux (1332A)
20000 lux-reading x 10;
200000 lux-reading x 100
Display Highest digit of (1) is displayed
Resolution 0.01 Lux (1330A,1334A) & 0.1 Lux(1332A)
Accuracy +/- 3% rdg +/- 0.5% f.s.(<10,000>10,000 lux)
(calibrated to standard incandescent lamp, 2856 K)
Repeatability +/- 2%
Temperature Characteristics +/- 0.1% oC
Measuring Rate Approx. 2 times/sec.
Recorder Output DC 2V/f.s. (full scale) (TES-1332A)
Operating Temperature & Humidity 0o to 40oC (32oF to 104oF)
---------------------------------------------------------------------------------
notes:
1. Instruction Manual
Digital Lightmeter (Lux meter)
TES 1330A (taiwan)

Also Available:
Ceto 1330A/B (china) =

Guo Gen (Shanghai) Digital Caliper

specs:
notes:

hios hp-10, hp-100 TORQUE METER

hios hp-10, hp-100 TORQUE METER

HP Series
Model HP-10 HP-100
Peak Measuring range (Nm) 0.015 - 1.000 0.15 - 10.00
Accuracy Up to -0.5% to +0.5% (F.S.)
Measuring modes Track, Peak, First peak
Dimensions (mm) 230 x 124 x 65.2(H)
Weight (g) 1800
Battery life (charging time) five 1.2V NiMH cells 1,000mA (6 hours)
Continuous running time on full charge 8 hours
Battery life Approx. 300 charges
Exclusive battery charger AC 100 - 240V input (50 or 60 Hz) OR
DC 7.3 - 8V output 0.5A

HDP Series
Model HDP-5 HDP-50
Peak Measuring range (Nm) 0.015 - 0.500 0.15 - 5.00
Accuracy Up to -0.5% to +0.5% (F.S.)
Measuring modes Track, Peak
Dimensions - Display unit(mm) 125 x 95.6 x 42 (H)
Dimensions - Detector(mm) 104(L) x 21 160(L) x 34.5
Dimensions - Detector bit socket(mm) Hios4 or 1/4 Hex Hios5 or 1/4 Hex
Weight - Display unit(g) 780
Weight - Detector (g) 68 250
Detector Cord (m) 1.7 (No.: DPC-0506)
Battery pack (charging time) five 1.2V NiMH cells 1,000mA (6 hours)
Continuous running time on full charge 8 hours
Battery life Approx. 300 charges
Exclusive battery charger AC 100 - 240V input (50 or 60 Hz) OR
DC 7.3 - 8V output 0.5A

ANTISTATIC PLASTIC TWEEZER

HANSIN ANTI-STATIC PLASTIC TWEEZERS

Made from special Static dissipative (ESD safe) engineering plastic (Glass Filled Delrin with Carbon fiber, etc.) that has combine durability and anti-static properties.

Surface Resistance: 1 x 10^6 to 1 x 10^10 Ohms

Length:
model Length Cross reference Style
Hs-01 120mm Flathead
Hs-02 115mm Sharp Tip tweezers with raised head
Hs-03 120mm Tip tweezers (round head)
Hs-05 115mm Level tweezers
Hs-06 122mm Right-angle bent-nose tweezers
Hs-08 120mm Duckbill tweezers, Flat

STAINLESS STEEL TWEEZERS

HANSIN SS TWEEZERS

* High precision * anti-magnetic * anti-acid * anti-corrosive stainless steel tweezers

length & style:
model Length Cross reference Style
Hs-01 120mm Flathead
Hs-02 115mm Sharp Tip tweezers with raised head
Hs-03 120mm Tip tweezers (round head)
Hs-05 115mm Level tweezers
Hs-06 122mm Right-angle bent-nose tweezers
Hs-08 120mm Duckbill tweezers, Flat
TS-10 126mm TWEEZER AA
TS-11 137mm
TS-12 115mm
TS-13 121mm TWEEZER FLAT ROUND TIP 2A SA
TS-14 123mm
TS-15 118mm #7 Curved Jewelry Tweezers, 7A-SA

HEAVY Duty antistatic wrist strap - XJB-Wh-Posh

xjb maroon wrist strap

xjb blue wrist strap

Product Name: HEAVY Duty antistatic wrist strap
Brand : XJB-Wh-Posh

Description: Normal antistatic wrist using soft and elastic fabric mix woven with conductive thread. Which have good conductive functions, adjustable length, spring grounding thread that can endure 30000 times environmental test and still maintain good condition, not ruptured.

Ferrule resistance : <100 ohm
Grounding resistance: 10^6 ohm
Static discharge time: < 0.1s
Diameter of wire: 2.5mm & 3mm

ANTI-STATIC WRIST STRAPs

Anti-Static Wrist Straps Available from hansin electronics

1. Product Code No. WS- LEKO PU (PolyUrethane)
Description:
1) Material: the conductive elastic band is made of polyester, and woven stainless
steel/nickel fiber. It is located on the inside of the wrist strap, and therefore
insulates the exterior of the band
2) Grounding cord: 2m PU (polyurethane) coil cord with 1 MΩ resistor
Ground resistance = 1 MΩ
3) Band size: 2cm x 21cm
4) Color: light blue, black, dark blue
5) Technical parameters:
Current limiting resistor: 1.5%
Band resistance: <50Ω
Electro dissipative time: 0.1s
6) Characteristics: Safe and reliable , Adjustable , Some water resistance , Suitable for using in cleanroom
=====================================

2. Product Code No.: WS- XJB
Product Name: HEAVY Duty antistatic wrist strap
Description: Normal antistatic wrist using soft and elastic fabric mix woven with conductive thread. Which have good conductive functions, adjustable length, spring grounding thread that can endure 30000 times environmental test and still maintain good condition, not ruptured.

Ferrule resistance : <100 ohm Grounding resistance: 106 ohm
Static discharge time: < 0.1s Diameter of wire: 2.5mm & 3mm
=====================================

3. Product Code No.: WS- LEKO Metal
Product Name: adjustable metal antistatic wrist strap
Description: adjustable metal antistatic wrist manufactured with anti-allergic stainless steel, loop outside covered with insulation materials, anti-scrub. Adjustable length, anti-dust, suitable for long time using and normally used for class 100 clean room.

ferrule resistance:<100 ohm
Grounding resistance: 106 ohm
Static discharge time: < 0.1s
=====================================

Note: Low cost anti-static wrist strap (LEKO PVC) also available!

HANSIN/ HANSTAR/ EXALT 498- Wrist Strap Tester

Hansin-Hanstar 498- Wrist Strap System Tester

Used to check wrist straps and ground cords, as well as the contact resistance between wrist strap and skin. To operate, simply connect the tester to the ground cord of the wrist strap assembly, and press the finger pad. If the wrist strap and ground cord are working properly (resistance between 500KΩ and 10MΩ), the green "GOOD" lamp will light up and an audible signal will be heard. A lit red "HIGH" lamp, with no audible signal heard, indicates loose contact between wrist band and skin (resistance greater than 10MΩ). A lit red "LOW" lamp, with no audible signal heard, indicates a faulty ground cord resistor (resistance less than 500KΩ). It Comes with 8-ft. grounding wire and 9V battery.

Features:
• Can be used anywhere for quick and easy checking variety of grounding systems.
• Ensures employee safety.
• Eliminates product defects caused by static electricity.
• Battery operated (included)

Specifications
Power Supply 9V Dry Battery

LED Indication Calibration Resistance Buzzer
LOW (Red) R <> 9M ohm OFF

Note: The tolerance in resistance is set to 0 +10% for the
Lower Limit of 800 KiloOhm and -10% to 0 for the upper limit of 9 MegaOhm
-----------------------------------------------------------------------------------------
notes:
1. the Manual

===============

Wrist Strap System Tester EXALT 498

 Used to check wrist straps and ground cords, as well as the contact resistance between wrist strap and skin. To operate, simply connect the tester to the ground cord of the wrist strap assembly, and press the finger pad. If the wrist strap and ground cord are working properly (resistance between 500KΩ and 10MΩ), the green "GOOD" lamp will light up and an audible signal will be heard. A lit red "HIGH" lamp, with no audible signal heard, indicates loose contact between wrist band and skin (resistance greater than 10MΩ). A lit red "LOW" lamp, with no audible signal heard, indicates a faulty ground cord resistor (resistance less than 500KΩ). It Comes with 8-ft. grounding wire and 9V battery.

Features:
• Can be used anywhere for quick and easy checking variety of grounding systems.
• Ensures employee safety.
• Eliminates product defects caused by static electricity.
• Battery operated (included)

Specifications
Power Supply 9V Dry Battery

LED Indication Calibration Resistance Buzzer
LOW (Red) R <> 9M ohm OFF

Note: The tolerance in resistance is set to 0 +10% for the
Lower Limit of 800 KiloOhm and -10% to 0 for the upper limit of 9 MegaOhm







https://www.youtube.com/watch?v=kG4tiBTbIS4

Ear Infrared Thermometer Hansin ET100B

Ear Infrared Thermometer Hansin ET100B
'thermoscan'

1) Measuring range: 34.0°C~44.0°C (93.2°F~111.2°F)
2) Accuracy: ±0.2°C (±0.4°F)
3) Min Scale: 0.1°C
4) Auto shut-off in one min after nonuse
5) Power consumption: 0.6MW(working)
6) Memory: 10 recordings
7) Measuring time: 1 second
8) Beeper function
9) Safe and Hygienic
10) Battery: Lithium battery, 3 V. (common CR 2032)
11) Battery life: Approx 4000 takes
12) Size: 110×35×35mm
13) Weight: 80g (include batteries)
14) Display: easy-to-read, Three-digit LCD
15) Easy-clean, Cover Free Design
16) CE APPROVED

Walkthrough Security Metal Detector Door

Walk-through Metal Detector Door

1. Metal Detector Door (HANSTAR 200)
2. Metal Detect Door (HANSTAR 300) - Water Proof

A walkthrough metal detector that meets GB15210-2003 standards.
The 92 kg device runs on 220V power supply and requires less than 30W
operating power. It has 222x80x50 cm outer frame and 200x70x50 cm
inner frame. It operates in temperatures within -20 degrees to 45 deg C.

Applications:
Airports, Customs, Government administrations, Gyms, Public places, Prisons, Institutions, Hospitals, Financials, Entertainment venues, Courthouses, Power plants. Mine, Mints, Electronic industry, Groceries, Jewelry, Manufacturing facilities.

Specifications:
Detection method: Electric induction
Sensitivity adjustment: 100 steps per zone
Alarm: Buzzer
Power voltage: AC100-240V, 50-60Hz
Power: <=30W
Operating frequency: 5-10KHz
Operating temperature: -20 to +45 centigrade
Net weight: About 92kgs
Tunnel dimension: 2000(H)x700(W)x500(D)mm
Outside dimensions: 2200(H)x800(W)x500(D)mm Standards passed：GB15210

UNDERGROUND METAL DETECTOR

UNDERGROUND METAL DETECTOR MD-5008

underground metal detector

-for landmine detection
-for treasure hunting

Portable METAL DETECTOR -for Security Guards

HAND HELD METAL DETECTOR 3003B1

The 3003B1 is a high performance Hand Held Metal Detector designed to meet the exact requirements of the security industry. Typical uses will include body search for offensive weapons in crowd control, airport and border security, checking parcels and letters for metal objects and anywhere that hidden metal needs to be detected.

Specs: Power 9V Standard or Rechargeable Battery( 270mW)
Operating Frequency 22KHz
Operating Current <50mA , Operating Voltage 7-9V
Recharging Voltage 12V DC or 9V AC
Operating Temperature -5℃to+55℃
Net Weight 411g , Dimensions 410mm(L)x85mm(W)x45mm(H)

Typical performance figures are given below: Maximum Detection Range :
Object Low Sensitivity Optimal Sensitivity
38 Caliber hand gun 25cm 30cm
Pen knife 12cm 26cm
Razor blade 5cm 12cm

MAGNIFYING LAMP

bf 600 clamp support
-------------------------------------------------------------------------

model LT-86A ( old code= Hs- 616) clamp support

model LT-86A in its shipping box
(other suppliers' code= Fight FD-100)

----------------------------------------------------------------------------

LT-86B ( old code= hs-609) Desktop pole support - straight
(cross reference or other suppliers code: elet F-500B )

------------------------------------------------------------------------------------------

LT-86C (old code= 606) LT-86C ( old code = hs-606) Desktop support- folding

------------------------------------------------------------------------------------------

ILLUMINATING MAGNIFYING LAMP
* Magnifying and Daylight lighting combined.
* Safe to people’s eyesight. * Luminous and consistent light.
* Preferred Lens (3X, 5 x, 8x, 10x) can be chosen.
* The 22W circular light bulb is widely available at low price.

Applications - Electronics Circuit Board Assembly and Repair
- Inspection of Circuit Board.
- Can be used in different fields, i.e engineers, doctors, gemologist, art lover, stamp collector, etc.

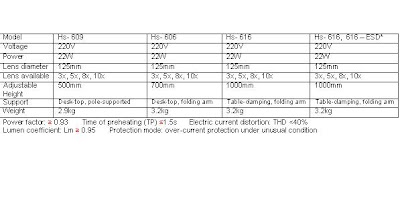

specs (pls click to enlarge)
Model LT-86B (Hs- 609) / LT-86C (Hs- 606) / LT-86A (Hs- 616)
Voltage 220
Power 22W
Lens diameter 125mm
Lens available 3x, 5x, 8x, 10x
Adjustable Height 500mm / 700mm/ 1000mm/ 1000mm
Support Desk-top pole-supported/ Desk-top, folding arm/ Table-clamping, folding arm / Table-clamping, folding arm
Weight 2.9kg/ 3.2kg/ 3.2kg/ 3.2kg
Power factor: ≥ 0.93 Time of preheating (TP) ≤1.5s
Electric current distortion: THD <40% ----------------------------------------------------------------------------------- notes:
1. detailed view of the bf-600 model


2. mas maganda yung bf600 kesa sa model 616. yung bf 600 kasi is nakatago yung spring support. pero mas binibili ng clients yung model 616 kasi mas mura. Cost cutting! same lang naman kasi ang output.

3. pedeng mamili ng lens- 3x, 5x, 8x, & 10x, or 20x (special order).. mas lower cost at mas convenient gamitin tong magnifying lamp during soldering compared to microscope. mas binibili ng client ang 5x at 10x, pero merong ilan na gusto ang 8x.

4. yung ilaw nya pag napundi is pedeng paltan. bili ka lang sa hardware, o sa Ace Hardware sa SM or sa DIY ng 22W circular lamp. nasa 100 pesos lang yata ang isa. unlike kung microscope gamitin mo, pag napundi yung ilaw non,hirap humanap ng replacement.
