Feb 28, 2024

International System of Units (SI)







The International System of Units (SI) is the modern form of the metric system and is the most widely used system of measurement. It comprises a coherent system of units of measurement built on seven base units. Here they are:

  1. Meter (m) for length
  2. Kilogram (kg) for mass
  3. Second (s) for time
  4. Ampere (A) for electric current
  5. Kelvin (K) for thermodynamic temperature
  6. Mole (mol) for amount of substance
  7. Candela (cd) for luminous intensity

These base units are used in combination with each other and with a set of prefix multipliers to derive other units of measurement for quantities like speed (meters per second), volume (cubic meters), and density (kilograms per cubic meter), among others.


In addition to the seven base units in the International System of Units (SI), there are also many derived units. These are formed by combining the base units according to the laws of physics. Here are some examples:

  1. Newton (N) for force: This is equal to one kilogram meter per second squared (kg·m/s²).
  2. Joule (J) for energy, work, or amount of heat: This is equal to one newton meter (N·m) or one kilogram meter squared per second squared (kg·m²/s²).
  3. Watt (W) for power or rate of doing work: This is equal to one joule per second (J/s) or one kilogram meter squared per second cubed (kg·m²/s³).
  4. Pascal (Pa) for pressure or stress: This is equal to one newton per square meter (N/m²) or one kilogram per meter per second squared (kg/m·s²).
  5. Hertz (Hz) for frequency: This is equal to one cycle per second (1/s or s⁻¹).
  6. Coulomb (C) for electric charge or quantity of electricity: This is equal to one ampere second (A·s).
  7. Volt (V) for electric potential or electromotive force: This is equal to one watt per ampere (W/A) or one kilogram meter squared per second cubed per ampere (kg·m²/s³·A).
  8. Ohm (Ω) for electric resistance: This is equal to one volt per ampere (V/A) or one kilogram meter squared per second cubed per ampere squared (kg·m²/s³·A²).
  9. Siemens (S) for electric conductance: This is equal to one ampere per volt (A/V) or one second cubed ampere squared per kilogram meter squared (s³·A²/kg·m²).
  10. Farad (F) for electric capacitance: This is equal to one coulomb per volt (C/V) or one second to the fourth power ampere squared per kilogram meter squared (s⁴·A²/kg·m²).

These are just a few examples of the many derived units in the SI system. Each of these units is used to measure a specific quantity and can be expressed in terms of the seven base units.


here are some more examples of derived units in the International System of Units (SI):

  1. Lumen (lm) for luminous flux: This is equal to one candela steradian (cd·sr).
  2. Lux (lx) for illuminance: This is equal to one lumen per square meter (lm/m²).
  3. Weber (Wb) for magnetic flux: This is equal to one volt second (V·s) or one kilogram meter squared per second squared per ampere (kg·m²/s²·A).
  4. Tesla (T) for magnetic field strength or magnetic flux density: This is equal to one weber per square meter (Wb/m²) or one kilogram per second squared per ampere (kg/s²·A).
  5. Henry (H) for inductance: This is equal to one weber per ampere (Wb/A) or one kilogram meter squared per second squared per ampere squared (kg·m²/s²·A²).
  6. Degree Celsius (°C) for temperature relative to 273.15 K.
  7. Becquerel (Bq) for radioactivity (decays per second): This is equal to one reciprocal second (s⁻¹).
  8. Gray (Gy) for absorbed dose of ionizing radiation: This is equal to one joule per kilogram (J/kg) or one square meter per second squared (m²/s²).
  9. Sievert (Sv) for equivalent dose of ionizing radiation: This is equal to one joule per kilogram (J/kg) or one square meter per second squared (m²/s²).
  10. Katal (kat) for catalytic activity: This is equal to one mole per second (mol/s).

These derived units are used in various fields of science.

 ref: NIST, google, cici


Feb 22, 2024

Desoldering Wick /braid CHEMTRONICS Chemwik (made in USA)












Chem-Wik® Rosin SD ( made in USA)

The fast, safe rosin flux desoldering braid packaged in static dissipative bobbins, ITS HALIDE FREE
■ Chem-Wik® Rosin packaged in static dissipative bobbins
■ Reduces the risk of damage associated with static electricity
■ Coated with noncorrosive ultra high purity Type R rosin flux
■ Quickly and thoroughly removes solder

Static Dissipative Packaging
■ DOD Standard 1686C and MIL-HDBK-263B
■ Mil-Std-2000A
■ Mil-B-81705C Static Decay Rate Provision

PermaPak™ Barrier Packaging contains 25 bobbins per package
Chem-Wik Rosin - 2-5L

Wick Size #1 White/Gray

0.03" / 0.8mm wide - best for SMD and micro-circuits
2-5L

     5' / 1.5m L, ESD-safe bobbin

   25 bobbins/case

 ---------

Chem-Wik Rosin - 5-5L

Wick Size #2 Yellow

0.06" / 1.5mm wide - best for small pads and SMD
5-5L

    5' / 1.5m L, ESD-safe bobbin

2   5 bobbins/case
--------------


Chem-Wik Rosin - 7-5L

Wick Size #3 Green

0.08" / 1.9mm (2mm) - best for medium pads
7-5L

5' / 1.5m L, ESD-safe bobbin

    25 bobbins/case

----------


Chem-Wik Rosin - 10-5L

Wick Size #4 Blue

0.110" / 2.8mm - best for large pads

10-5L

5' / 1.5m L, ESD-safe bobbin

  25 bobbins/case










NOTES:
1. ALL sizes are available now-
2-5L - equivalent of size #1
5-5L- equivalent of size # 2
 Green (7-5L)- 1.9mmx 1.5m ( equivalent of size #3)
 Blue (10-5L) – 2.5mm x1.5m ( equivalent of size #4 )


 ========
notes:
1.

How are Soder-Wick and Chem-Wik desoldering braid products classified?

Chemtronics uses 2 types of flux: Soder-Wick and Chem-Wik lines use natural gum rosin. Per J-STD-004 Section 3.2, they are classified as ROL0. Per British Std. EN 29454-1:1993 and ISO9454-1:1990, they have a classification of 1.1.1.B. No-Clean and Lead-Free fluxes are synthetic (non-colophony)flux. Per J-STD-004 Section 3.2, they are classified as REL0. Per British Std. EN 29454-1:1993 and ISO9454-1:1990, the No-Clean and Lead-Free fluxes have a classification of 1.2.3.B.

What is desoldering wick made of?

Desoldering braid (wick) is made of fine strands of ultra-pure copper woven and coated with flux. Its geometrically precise weave design allows for maximum capillary action and solder capacity. Soder-wick optimizes heat transfer through the braid and into the solder joint, resulting in faster wicking action than any other competitive brand. Minimal flux residue on the board speeds up the cleaning process or eliminates it entirely.




Feb 15, 2024

ANYI DIGITAL CALIPERS- Standard digital caliper- Best Quality for Industrial & Professiona use!

Standard digital caliper










FEATURES


* Can measure OD, ID and depth.


* High consistency between up & down Jaws.


* Large and clear LCD readout.


* Imperial / Metric conversion.


* Zero - setting at any position.


* Data output from the data port.


* Powered by 1.5v button cells.


* Option: carbide-tipped measuring faces. This improves the working life.


* Packaging: box, battery and user manual.



----------------

6 inches digital caliper



0-150mm Digital Caliper ANYI 111-101 ANYI-111-101











------------

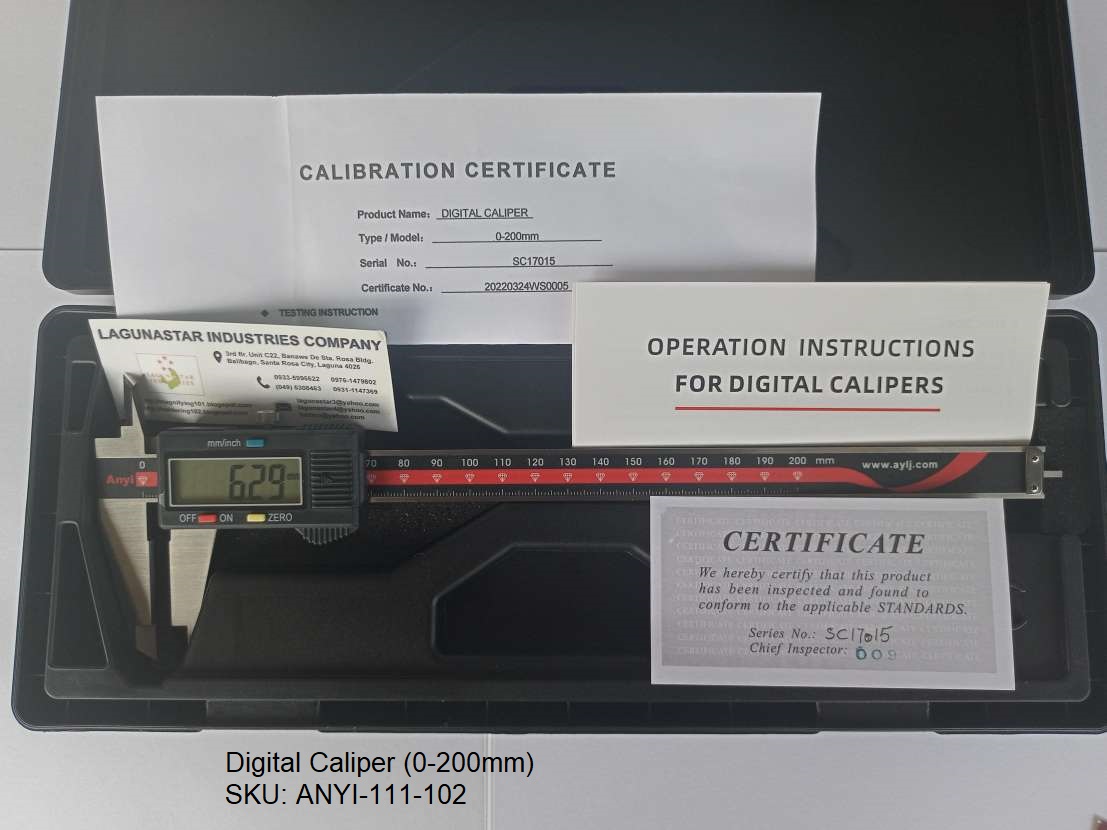

8 inches digital caliper


0-200mm Digital Caliper ANYI 111-102 ANYI-111-102













 ---------

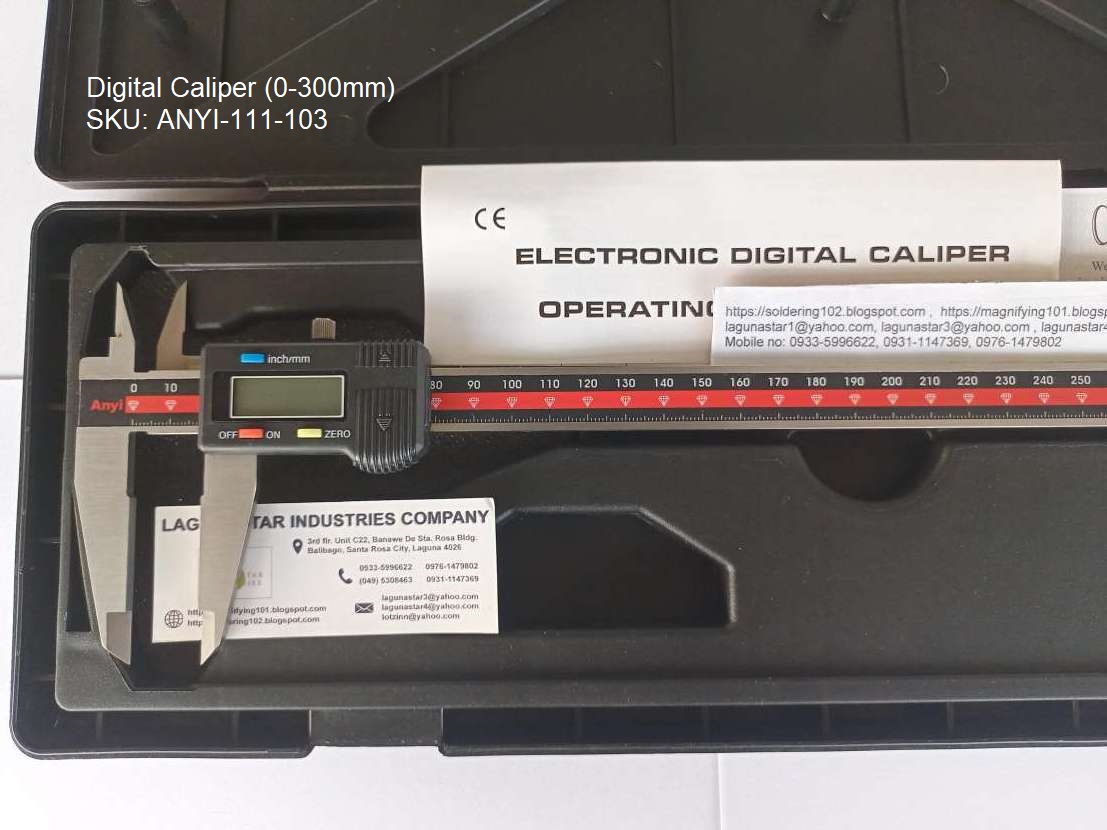

 12 inches digital caliper



0-300mm Digital Caliper ANYI 111-103 ANYI-111-103
















-------

NOTES:

1.
