HANSTAR HS-150W LED

the most powerful soldering station we have now at a very low price. it is high frequency soldering station- 150W, uses SMPS


-->

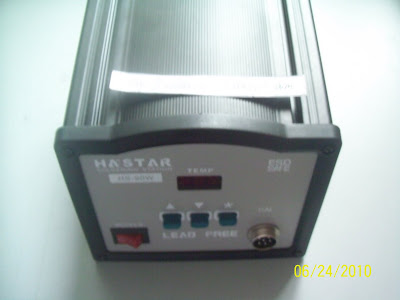

HANSTAR HS-150W LED

ESD soldering station

FEATURES:

Brilliant Performance

* Now Uses SMPS (Switching Mode Power supply)
* Astonished heating speed - Only within 20s to reach 300℃ from room temperature.
* Perfect intelligent soldering effects - Sufficient power varies with the sizes of soldering point.
* Effectively avoid negative impact by cold soldering etc.

* Extraordinary heat recovery -

Incredible temperature compensation speed can solve temperature problems occur during lead-free soldering. It is a better tool for lead-free soldering and lower-temperature soldering.
* Extension of life of soldering tips
Relative lower temperature will largely prolong the life of soldering tips.

● Separate Design between heater and soldering tips . No need to replace the whole unit. Just replace the worn-out soldering tips or iron for BIG savings.

* USES 500 SERIES Soldering Tips

* with anti-static grounding cord with crocodile clip

Applied Function
* Auto sleeping, energy-efficient, Temperature will lower to 200degC when not in use over 20 minutes.

When work is needed again, temperature will reach up to set one rapidly.
*Temperature can be locked by passwords to prevent inadvertent changes.

Specifications:

Power consumption	150W
Output voltage / Frequency	36VAC 400KHz
Temperature range	200 ~ 420℃
Input voltage	110V / 220V, 60Hz/50Hz.
Time of temperature rising(20℃-350℃)	25 sec
Temperature Compensation Speed	Very quick
Heating Mode	intelligent
Heating Theory	High frequency current
Tip to Ground Resistance	<>

Tip to Ground Potential

>

Auto Sleeping

Yes

Temperature-click Mode

Password

ESD Housing

Aluminum housing

Note: COMPLETE SOLDERING KIT:

PRICE INCLUDES SOLDERING IRON, WITH SOLDERING TIP, SOLDERING STAND & SPONGE, anti-static ground cord with crocodile clip

=========================
notes:
1. it's very powerful. its for factory clients that required 3 solder dots in 1 second

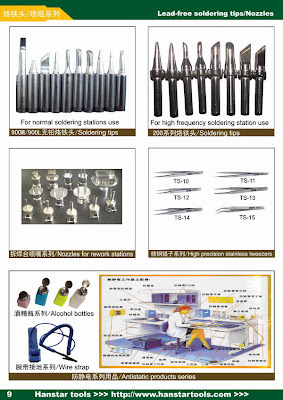

2. Before it also uses soldering tips 200 series like HS-90W. But now, it uses 500 series soldering tips since solder iron & heater is bigger than the Hs-90W & other high frequency 90W solder stations. so its solder iron & heater is not compatible with Hs-90W , 2000A, 203H, GT 33Q

 3. more photos

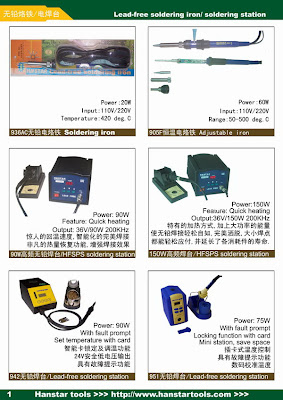

3. SOLDERING STATION- HANSTAR HS-90W LED

HANSTAR HS-90W (old code: hanstar 2000A) –ESD soldering station

FEATURES:

Brilliant Performance
* Astonished heating speed - Only within 20s to reach 300℃ from room temperature.
* Perfect intelligent soldering effects - Sufficient power varies with the sizes of soldering point.
* Effectively avoid negative impact by cold soldering etc.
* Extraordinary heat recovery -
Incredible temperature compensation speed can solve temperature problems occur during lead-free soldering. It is a better tool for lead-free soldering and lower-temperature soldering.
* Extension of life of soldering tips
Relative lower temperature will largely prolong the life of soldering tips.
● Separate Design between heater and soldering tips . No need to replace the whole unit. Just replace the worn-out soldering tips or iron for BIG savings.
* USES 200 SERIES Soldering Tips
* Now uses the SMPS- switched-mode power supply , so the high power Hs-90W is lighter in weight, & heats up very fast with minimal energy wasted.

Applied Function
* Auto sleeping, energy-efficient, Temperature will lower to 200deg C when not in use over 20 minutes.
When work is needed again, temperature will reach up to set one rapidly.
*Temperature can be locked by passwords to prevent inadvertent changes.

Specifications:
Power consumption 90W
Output voltage / Frequency 36VAC 400KHz
Temperature range 200 ~ 600deg℃
( the highest temp set- up can easily adjusted to 420, 450, 550, 600degC by just pressing
buttons )
FOR SAFETY reason & to prevent abuse to lengthen the life of the heater & the soldering
tip, the default highest temp is 420degC. However if you truly want the highest temp to go
up to 450, 550, or 600deg C, just press the "UP" button and "*" together,the LED will
shinning (blinking), then you can adjust the highest temperature up to 600deg.C

Input voltage 110V / 220V, 60Hz/50Hz.
Time of temperature rising(20℃ to 350℃) = 25 sec
Temperature Compensation Speed: Very quick
Heating Mode: intelligent
Heating Theory: High frequency current

-->

Tip to Ground potential= <2mv clip="=" housing=" aluminum" href="https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEht4nBfA89tDoUI7bPLyVV31jgi1i5YMDfYmPqOMyr7LMMxbZhkCf5SoFjUFcljRfJI5ho5RUvGWPXeczZ8j0pwDRlM-Cw3itS7dxWu466jtZSrq_GulNi8j4De8n5jZZITe1VLs-kxYMw/s1600-h/200+SERIES+TIPS.JPG" mode=" yes" onblur="try {parent.deselectBloggerImageGracefully();} catch(e) {}" password=" yes">
4. SMPS according to wikipedia:
A switched-mode power supply (switching-mode power supply/SMPS, or simply switcher) is an electronic power supply unit (PSU) that incorporates a switching regulator in order to provide the required output voltage. An SMPS is a power converter that transmits power from a source (e.g., a battery or the electrical power grid) to a load (e.g., a personal computer). The function of the converter is to provide a regulated output voltage usually at a different level from the input voltage.
Unlike a linear power supply, the pass transistor of a switching mode supply switches very quickly between full-on and full-off states, which minimizes wasted energy. Voltage regulation is provided by varying the ratio of on to off time. In contrast, a linear power supply must dissipate the excess voltage to regulate the output. This higher efficiency is the chief advantage of a switch-mode power supply.
Switching regulators are used as replacements for the linear regulators when higher efficiency, smaller size or lighter weight are required. They are, however, more complicated, their switching currents can cause electrical noise problems if not carefully suppressed, and simple designs may have a poor power factor.

anti-static Brush ( ESD brush)

Paint brush style GJ- 920 version1

ESD brush PAINT brush style:

Lagunastar SKU = GJ-920v1

Length of body=131 mm Brush Head dimension= 17 x 17 x 5 mm

Cross Reference ( PN of other suppliers) = WT-04,ABB-511

========

U- Brush Style Gj- 927

Gj-927 (it’s large!) -

Lagunastar SKU=  GJ-927

Brush Head dimension= 67 x 20 x 33 mm

Cross Reference ( PN of other suppliers) =  WT-06, ABB-350

Electrostatic Field meter Vessel SDL-01 ( Japan)

Vessel SDL-01

The locator is indispensable towards resolving "invisible static electricity trouble". The SDL-01 checks the charged state of products or packaging materials, the positions of static electricity removers, and confirms the removal of static electricity from the product.

Features

• The potential of charged item is digitally indicated without making contact. Invisible static electricity can be easily maesured
• Voltage is measured and indicated in units of 1000V in a range from -19.9 to +10.9KV every 0.5 seconds
• handy, portable, small and lightweight unit with a storage case
• Low power consumption enables unit to be used with 4 AA batteries for up to 6 months

==============
notes:
1. this is one the lowest cost static field meter from Japan, but very good quality. every factories must have it.
2. this " low cost" field meter is recommended for the Electronics, Semicon, & other industries such as the Plastic Industries
3. It has no charge plate ( or also called as ion balance plate) , so hindi nito masusukat yung ion balance ng mga ionizers. Yung ion balance measurement is necessary para sukatin ang performance ng mga anti-static ionizers. ang me charge plate is the Vessel Eye-01.

other actual pictures:







Vessel SDL-01 is very power efficient & at normal industrial usage, yung batteries nya ay tumatagal ng mga 6 months to 1 year.

How to Change Battery:
PLS READ INSTRUCTION MANUAL


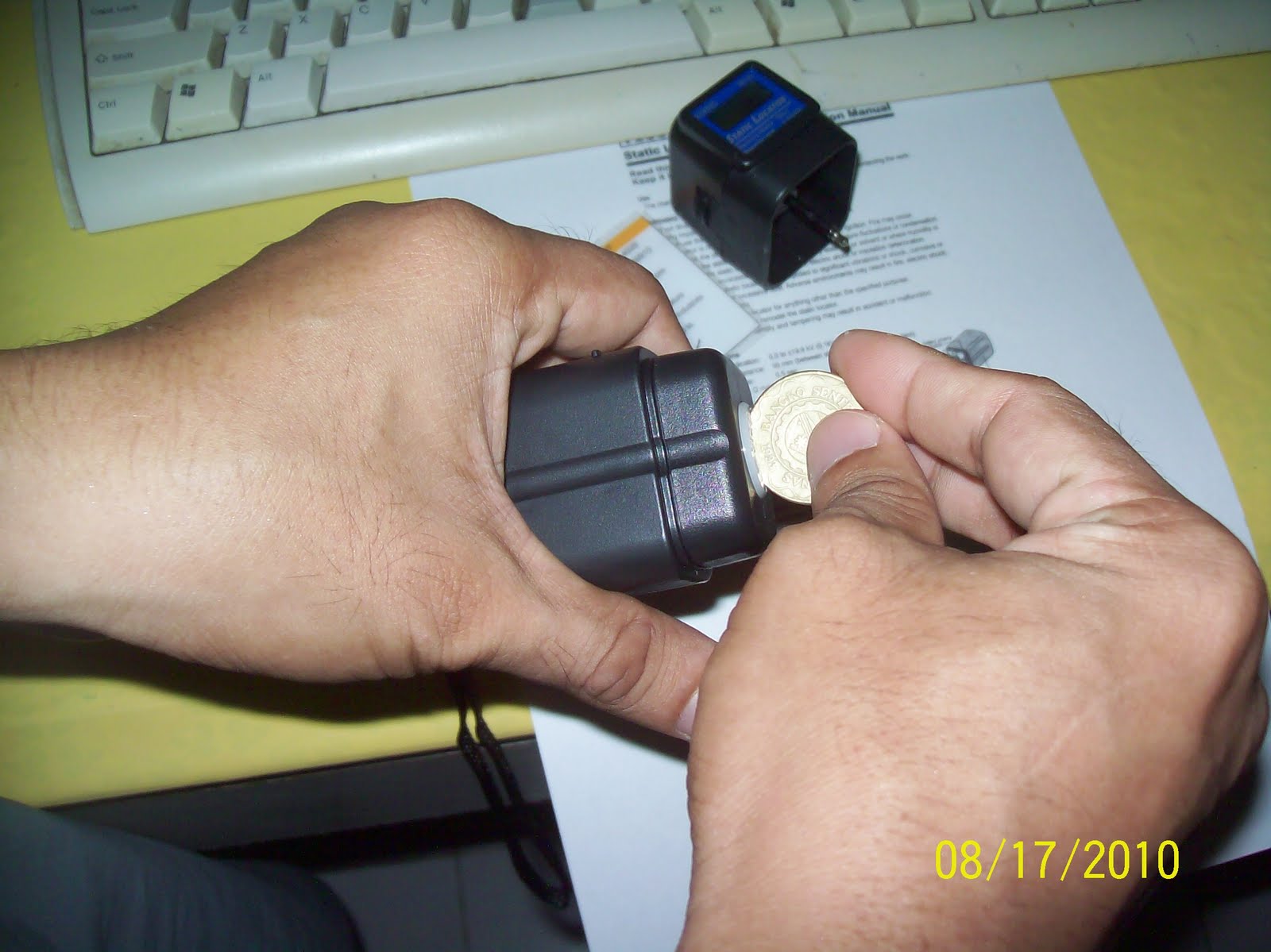

after matanggal ang head, use one peso or 5 -peso coin to open the battery compartment, Counterclockwise Turn

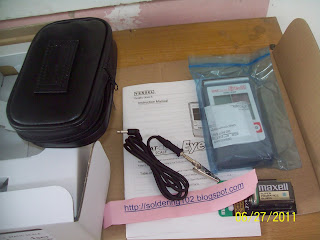

Electrostatic Field meter Vessel Eye-01

Super Static Field Meter Scale
(With built-in one-chip microcomputer)
VESSEL’s EYE-01 is a palm-sized electrostatic measuring device ideal for measuring polarity and intensity of static charge on parts and assembly lines. Also, it’s very useful for checking ion balance performance of various ionizers.

What makes the EYE-01 so user-friendly and easy to use?

Easy-to-read Wide LCD screen display

• Upper left graph display – indicates negative polarity
• Upper right graph display – indicates positive polarity
• Lower section display – shows numerical values, voltage measurement unit, and functions in use.
• Battery icon indicates when to replace the battery
• LED lighting function to read measurement values in the dark

Function mode to check the static charge on parts and assembly lines.

• “Static charge measurement mode (Standard mode)” checks if the object is statically charged. It’s calibrated for voltage range 0 to 20kV.
  • ± 0 ± 1.49kV (Low range)
  • ± 1.0 ± 20.0kV (High range)

Ion balance measuring mode for checking performance on ionizers

• Compact design and lightweight makes it easy for operator to perform periodic verification of ionizers, including units that are installed in hard-to-reach places like in automated machinery or workbenches.
• Can be used to measure low voltages up to 200V in the ion balance mode.
• Ion balance plate included (charge plate).

Focus-Ring LED lights show you the correct measuring distance

• A measuring distance of 0.98” ± 0.02” (25mm±0.5mm) can be easily checked by "Focus Rings" beamed from the two red LEDs.

Easy press buttons to activate functions

• Continuous mode - allows operator to take readings longer than 5 minutes. Simply turn on the EYE-01 without activating the “auto power off function” by keeping the power button pressed in for 3 seconds.
• Hold mode - enables measurements in hard-to-reach areas. When taking measurements in space-restricted areas, simply press the “hold mode” and the measurement value will be kept on the display screen.
• Digital zero mode - allows operator to adjust the reading to zero. Simply press “reset” to adjust the displayed reading and bar graph to the neutral state.
• Ion balance mode - takes measurement readings to check the ion balance performance on various ionizers.

Quality after-purchase servicing / Calibration service available

• EYE-01 is calibrated by testing equipment that’s proved to be fully compliant with ISO standards. Inspection (calibration) certificate can be issued for additional fee.
• CE RoHS compliant

Static Voltage Measuring Range	± 0 ~ ± 1.49 kV (Low range) ± 1.0 ~ ± 20.0 kV (High range)
Ion Balance Voltage Measuring Range	0 ~ ± 200v
Measuring Distance	0.98" ± 0.02" (25mm ± 0.5mm) (between charged object and field meter)
Accuracy	± 10%
Ambient Conditions	50ºF ~ 104ºF (10ºC ~ 40ºC), 60% RH or lower
Display	Large LCD display (Digital and bar graph)
Power	9V. 6F22Y manganese battery: 1 PCE (Life: Approx. 30 hrs)
Weight w/Battery	Approx. 0.31 lbs (140g) without ion balance plate [Ion balance plate alone: Approx. 0.07 lbs. (30g)]
Accessories	Charge plate for ion balance measurement Ground cord (w/alligator clip), Battery (006P), soft case
Applications	For checking the performance of ionizers, locating and measuring electrostatic charge build-up, deciding best location for installing ionizers and testing their efficiency.

For Video of Vessel Eye-01, pls click

------------------------------
Notes:
1. cross reference from other manufacturers:

a. 3M 718 + 3M™ Model Air Ionizer Test Kit 718A
b. Simco FMX-002 , Simco Fmx-003

Notes sa paggamit:
1. It is a must to Pls read the Catalog & the Instruction Manual first before gamitin ang Eye-01. it is to familiarize your self sa parts, but very easy lang ang paggamit ng Vessel eye-01.

2. put the battery

3. put the grounding cord dun sa slot sa right side nya. ( recommended). Recommended na iground siya, but if pag ang application is hindi abot yung grounding cord, it is ok kahit hindi nakaground, but more accurate ang reading pag nakaground.

   If naka anti-static wrist strap yung users, or naka conductive shoes or heel grounder siya, or if nasa EPA ( ESD protected Area) yung operators, then hindi na need na iground siya kasi yung main body ng Vessel eye-01 is made from conductive resin

4. I power ON

5. if you will use it to measure the static charges, then tanggalin ang charge plate na nasa top head para lumitaw yung sensor, matatanggal mo yung charge plate by pushing the side buttons. Ilagay sa ilalim yung charge plate sa pamamagitan ng pagsuksok sa slot

6. then you can measure the statics, the correct distance is pag nagcoverge na yung 2 laser circle

7. pag tapos na ang reading, i Off ang eye01, then pls bring back yung charge plate sa original position nya nya sa Top position, this will also protect the sensor

8. If you will use it to measure the Ionizer performance- Ion Balance, then I power ON lang ang unit. the charge plate is in the top position, then push the ION Balance button, then it will read the Ion balance of the Ionizer.  The Ionizers are in good working condition if the reading is 0 to 50V. mas malapit sa zero mas better ang quality ng ionizers.
