3. HANSTAR 852 SMD "Hot Air" Rework Partner

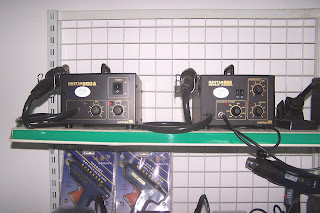

HANSTAR 852 Hot Air Rework Partner
* Two in one, (hot air nozzle & soldering iron 907 combined)
Features:
* Two in one, portable handle, easy to place and space saving
* Temperature heating rapidly
* Micro computer control, with good temperature stability
* Anti-static design, eliminating the harmful of static discharge
* The Rework Station has the same specs as the 850A
- Air volume and temperature are Adjustable, Suitable for Removing Various QFP, SOP, PLCC, SOJ, etc.
- ESD design safe for sensitive element.
- Automatic cooling system, Can work when power supply was Put off to prevent too hot.

CONTROL STATION:
Power consumption: 30W
Power consumption (After Power Off): 4W
Pump: Diaphragm model
Temperature range: 100-450℃
Air volume: 23 L/min
Resistance of welding nozzle to grounding: <2 br="">Voltage of welding nozzle to the grounding: <2mv br="">Length of Power line and soft pipe: 1.2m
Temperature Controller: Analog
voltage: 220V
Size:160(W)mm, 145(H)mm, 225(L)mm
Weight:about 4 kg

Sprayer:
Power consumption 270W
Length & Weight: 196mm , 120g

SOLDER IRON:
Soldering Iron Part name 907-ESD
Power consumption AC 24V 50w
Temperature range 200-480 ℃
Resistance between welding iron tip to ground < 2 Ω
Voltage of welding iron tip to the grounding < 2mV
The power line device 1.2m

NOTE: 1 SET includes 3 Free STAINLESS STEEL Nozzles: 3 of the ff size:
diameter 2mm, diameter 5mm, diameter 7mm, diameter 10mm
