SMT Splice tape items

SMT Splice tape items

ESD GLOVES ( Anti-Static Gloves) for Electronics Assembly/ Semicon Industries

ESD GLOVES
Anti-Static TOP FIT Gloves
ESD WHITE NYLON “ TOP FIT “ GLOVES	small	TP-ESDG-W-S
ESD WHITE NYLON "TOP FIT" WITH DOTS ON PALM	Large	TP-ESDG-W-L
ESD TOP FIT GLOVES GRAY	Small	TP-ESDG-G-S
Anti-Static PALM FIT Gloves
ESD GRAY CARBON NYLON “PALM FIT” GLOVES	small	PF-ESDG-G-S
ESD GRAY CARBON NYLON "PALM FIT"	XL	PF-ESDG-G-XL
ESD safe Palm fit gloves- Black,  showa B0500 precision gloves black	MEDIUM	ESDG-B0500-M

Waterun-800 Automatic Screw Feeder

Waterun-800 Automatic Screw Feeder

Lagunastar SKU= WA-800

Specifications:

DC power supply: AC220V, DC12V 500MA, AC Adapter

Applicable screw length (under head): up to 20mm

Rail adjustment range: M1.0 – M5.0

Speed of picking up: 1.5 second/pcs

Features:

Rail can be removed and adjustable;

One machine can be used for various screw sizes.





===
notes:
1. Additional photos

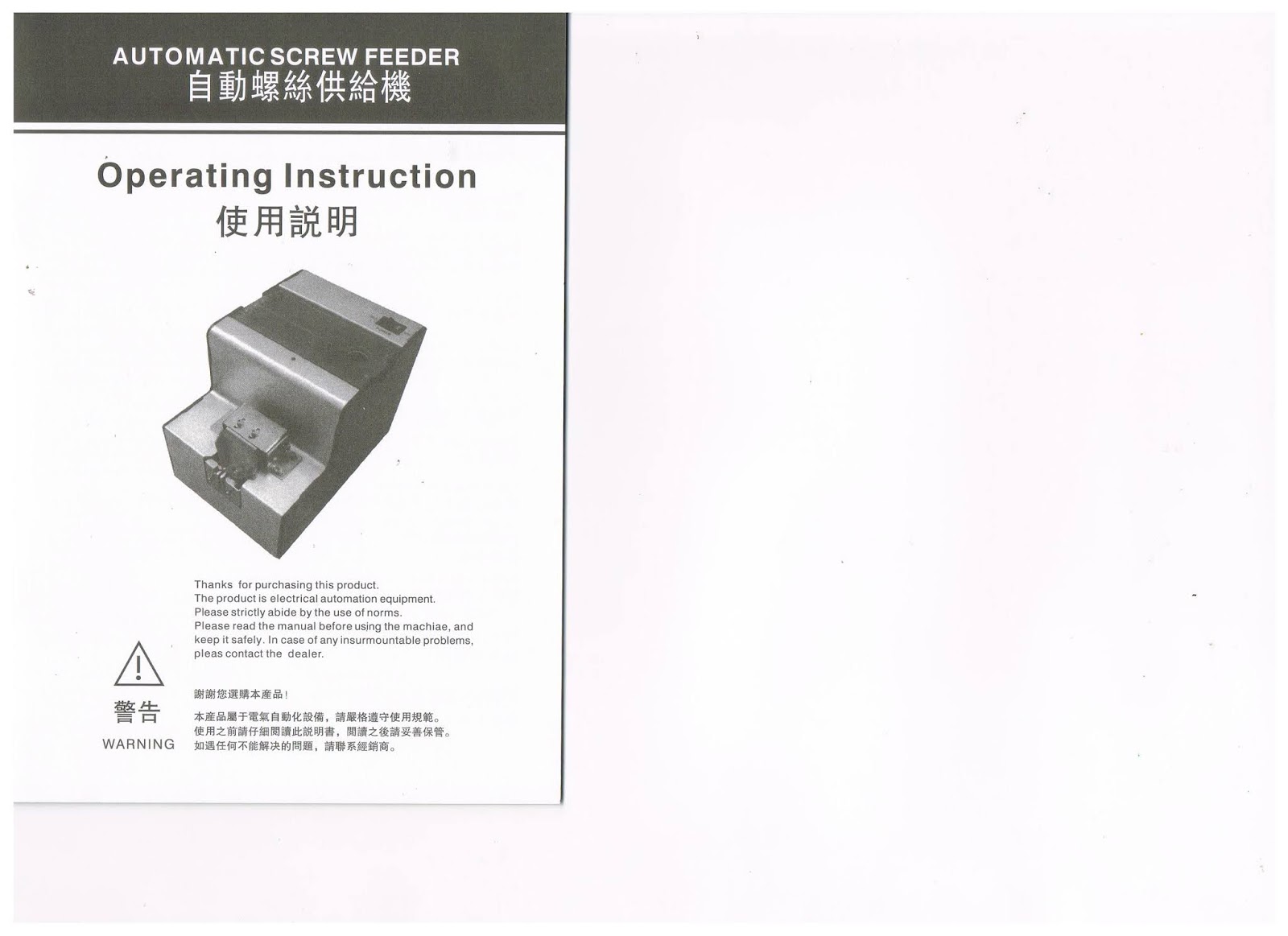

2. Instruction manual



Automatic Screw Feeder Waterun 800D

Waterun-800D Automatic Screw Feeder
Lagunastar SKU =  WA-800

Specifications:

DC power supply: AC220V, DC12V 500MA, AC Adapter

Applicable screw length (under head): up to 20mm

Rail adjustment range: M1.0 – M5.0

Speed of picking up: 1.5 second/pcs

Features:

Screw counting function with LED display;

Increasing or decreasing counting able;

Rail can be removed and adjustable;

One machine can be used for various screw sizes

WATERUN B-800 Dispensing Controller

WATERUN B-800 Dispensing Controller

Lagunastar SKU= WA-B-800

Technical Data:

→ Power consumption: 8W

→ Air source: max 0.99 Mpa   Pressure setting: 0.05-0.99 Mpa

→ Time setting: DIP switch 0.01-1s; 0.1-10s; 0.2-20s; 0.3-30s

→ Control mode: Manual / Quantitative (fixed volume dispensing)

→ Repetitive accuracy: ± 0.05%   Dispensing frequency: 600/min

→ Min. dispensing volume: 0.01 ml

→ Dimension: 235mm x 225mm x 63mm     Weight: 2.2 Kg

Applications:

→ Materials for dispensing:

   solder tin, tin paste, UV adhesive, lubricant, epoxy resin,

   fast cure adhesive, silicone resin, etc.

→ Usage: adhering, fixing, dot coating, line coating, etc.

---
Notes:
Cross ref:
1. Waterun B-800 & Hanstar 982 almost the same specs & parts are interchangeable
