Solder Wires- with Lead 63/37





Songtian 63/37 0.6mm-250g



LEADED SOLDER WIRES are also available

Brands: Keyida / Songtian

63/ 37

Flux: 2.2%

Available Dia: 0.6 , 0.8, 1.0mm

Available Weight = 250 g, 500g spool

very good quality 63/37 solder wire

SONGTIAN 63/37 solder wire.

63/37 are flux cored solder wire (not lead-free), they consist of 63% tin and 37% lead.

They are Eutectic , with melting points of 183 deg C.

Eutectic - a minimum-melting composition of 2 or more components,

each of which melts and freeze congruently forming a mixture of the component crystals during crystallization.

============
notes:
1. same price,same materials & same quality lang ang Keyida & Songtian 63/37 solder wires
2. better quality ang 63/37 kesa sa common 60/40 solder wires.
3. it is already flux cored so me flux na din siya sa gitna ng solder wires, so for usual application, ok lang kahit wala ng flux or flux paste.

Lead-Free Solder Wire- RoHS

LEAD- FREE SOLDER WIRE

Brands: Keyida , S & T ( J & D), Songtian, Jide Soldering

ROHS compliant

Sn/ 0.7Cu

Flux: 2.0% to 2.5%

Available Dia: 0.6 , 0.8, 1.0mm

Available Weight = 500g spool, 800g spool

===========================================================

Lead- Free Solder wires

Sn/0.7Cu/ 0.3Ag is also available (0.6mm at 500g spool only)

Flux: 2.2%

CHEERMAN ThermoHygrometer DT-8260

INFRARED THERMOMETER(Mini Type) -50℃ ～ 260℃ INFRARED THERMOMETER(Mini Type) INFRARED THERMOMETER（home type）

Product Readme

◆ Temperature Range -50℃ ～260℃ -58 ℉ ～ 500℉ ◆ Accuracy ±2% or 2℃ ◆ Distance Spot Ratio 2:1 ◆ Emissivity 0.95 ◆ Response Time & Wavelength 500ms & (8-14)um ◆ Repeatability ±1% or±1℃ ◆ Resolution 0.1℃ or 0.1℉ ◆ ℃/℉ Selection √ ◆ Data Hold Function √ ◆ LED Lighting Selection √ ◆ Auto Power Shut Off √ ◆ Low Battery Indication √ GENERAL CHARACTERISTICS ◆ Power 2pcs AAA Battery (1.5V/each) ◆ Product Color blue/white/red/green/grey, etc PACKING INFORMATION ◆ Size 95*45*28mm ◆ Net Weight 65g

Infared thermometer (High Temp) Cheerman DT-8011T

◆ Temperature Range -50℃ ～ 1100℃ -58℉ ～ 2012℉

◆ Accuracy ±2% or 2℃

◆ Distance Spot Ratio 12:1

◆ Emissivity 0.1 to 1.0 adjustable

◆ Response Time & Wavelengt 500ms & (8-14)um

◆ Repeatability ±1% or±1℃

◆ Resolution 0.1℃ or 0.1℉

Avg/Dif Temperature Measurement √

◆Max/Min Temperature Measurement √

◆High/Low Temperature Alarm Setup √

◆ ℃/℉ Selection √

◆ Data Hold Function √

◆ Laser Target Pointer Selection √

◆ Backlight Display Selection √

◆ Auto Power Shut Off √

◆ Low Battery Indication √

　　　　　　 GENERAL CHARACTERISTICS

◆ Power 9V Battery

◆ Product Color Yellow + Grey

Probe Thermometer TP-3001

Digital Thermometer TP-3001
"STAB THERMOMETER ", or acts as Meat Thermometer, can also used in many application such as soil thermometer, or laboratory thermometer, or any application that needs a probe or contactTemperature Range -10deg C～300deg C（14deg F～572deg F）
Temperature Accuracy ±1%

℃ / ℉ Selection
Power 1.5V Battery
data-hold function √ Product Color Black

APPLICATION= FOOD or Any Contact Temperature Reading

CHEERMAN ThermoHygrometer

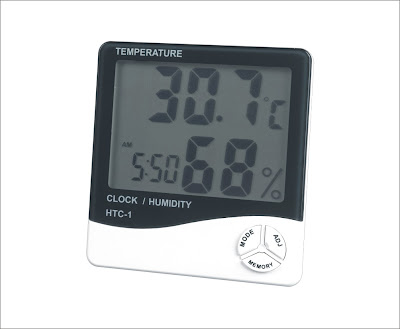

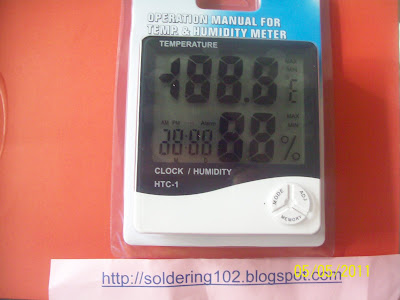

1. Clock/Humidity HTC-1

Lagunastar SKU= CHEER-HTC-1

      it is easy to use:  read the data accurately....

• Large LCD Display shows Temp, Humidity & Time at same time. Total LCD size: 80 x 60 mm
• Temperature and Humidity displayed in HUGE 1" high numbers.
• MAX / MIN Humidity & Temperature are recorded automatically and can be reset by user
• Fahrenheit or Celsius readout (changeable by selecting F or C on back)
• 12 or 24 hour time modes (changeable by using MODE & ADJ button to set)
• ALARM function , MONTH & DAY display available by pushing ADJ button
• Integrated back stand for desktop or table use OR hanging hole for wall mounting
• Power: ONE standard AAA 1.5v Battery (included)
• Ideal for home, office, travel and school

Large LCD, Low Power

Temperature Range -10deg C～+50deg C（14deg F～122deg F ）
Temperature Accuracy = ± 1 deg C , ± 1.8 deg F

Humidity Range 10%RH～99%RH
Humidity Accuracy ±5%
Display Tem.Humidity Simultaneously √ deg C/ deg F Selection √
12-hour/24-hour time system selectable √ Alarm Function √
Calendar Function √ Integral-hour alarm function √
Power 1.5V Battery Product Color White LCD Size 80mm length x 60mm height (wide screen LCD) LCD Display (2 layers) Temperature & Time/HUMIDITY

=================================================================

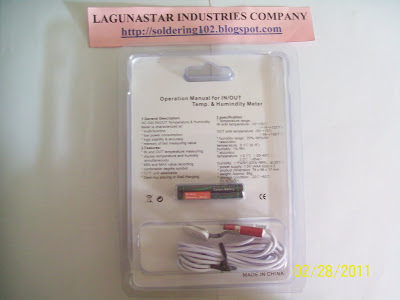

2. In/out Thermo-Hygrometer HC520

Indoor Temperature Range -10C ～ +50C（14F～ 122F）
Indoor Temperature Accuracy = ± 1 deg C , ± 1.8 deg F

Outdoor Temperature Range -50C ～ +70C（-58F ～ +158F）
Outdoor Temperature Accuracy= ± 1 deg C , ± 1.8 deg F

Humidity Range 20%RH～99%RH
Accuracy ±5%

Display Tem.Humidity Simultaneously √ deg C/deg F Selection √
Separate Indoor/ Outdoor Temp. MAX/MIN value memory √

Separate Indoor/ Outdoor Temp. Value RESET function √
Power= 1.5V Battery , Product Color = White LCD Size 52mm length x 36mm height (normal screen LCD) LCD Display (2 layers) TEMPERATURE & HUMIDITY

=========================================================
3. CLOCK/HUMIDITY TEMPERATURE KT-903

Temperature Range -10C～+50C (14F～122F)

Humidity Range 20%RH～99%RH

Accuracy : Temperature = ± 1 deg C , ± 1.8 deg F

RH = ±5%

Display Temperature .Humidity simultaneously √ ℃/℉ Selection √ 12-hour/24-hour time system selectable √ Alarm Function √ Calendar Function √ Integral-hour alarm function √ Product Color White, Power 1.5V Battery LCD Size 65mm length x 90mm height (JUMBO screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY

=======================================================================

4. CLOCK/HUMIDITY TEMPERATURE KT-905

Indoor Temperature Range -10C～50C（14F～122F）
Indoor Temperature Accuracy= ± 1 deg C , ± 1.8 deg F

Outdoor Temperature Range -50°C~70°C (-58°F~158°F)
Outdoor Temperature Accuracy = ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH～99%RH , Accuracy ±5%

Display Indoor Temp/Humidity, Outdoor Temp Simultaneously √
℃/℉ Selection √
Separate Indoor/ Outdoor Temp.MAX/MIN value memory √
Separate Indoor/ Outdoor Temp. Value RESET function √

Product Color White, Power 1.5V Battery LCD Size 65mm length x 90mm height (JUMBO screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY

=================================================================

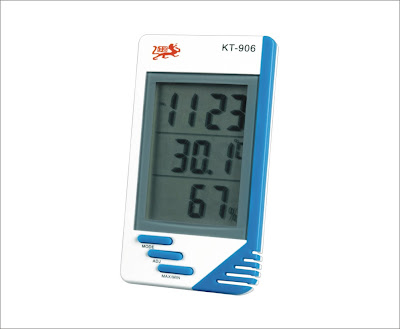

5. Clock/Humidity Temperature (KT-906)

Temperature Range -10 C ～ +50 C（14 F～122 F）
Temperature Accuracy = ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH～99%RH
Humidity Accuracy ±5%

Display Temp Humidity Simultaneously √ ℃/℉ Selection √ 12-hour/24-hour time system selectable √ Alarm Function √ Calendar Function √ Integral-hour alarm function √
Power 1.5V Battery , Product Color White

LCD Size 40mm length x 60mm height (normal screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY

=-===========================================================

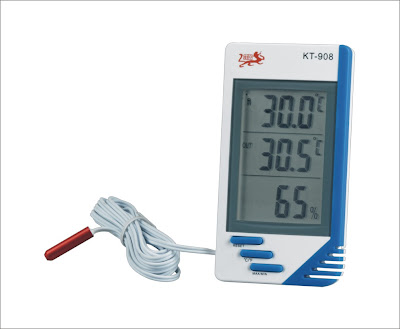

6. In/out Thermo-Hygrometer KT-908

Indoor Temperature Range -10C～50C（14F～122F）
Indoor Temperature Accuracy = ± 1 deg C , ± 1.8 deg F

Outdoor Temperature Range -50°C~70°C(-58°F~158°F)
Outdoor Temperature Accuracy = ± 1 deg C , ± 1.8 deg F
Humidity Range 20%RH～99%RH
Accuracy ±5%
Display Tem.Humidity Simultaneously √ , ℃/℉ Selection √
Separate Indoor/ Outdoor Temp.MAX/MIN value memory √
Separate Indoor/ Outdoor Temp. value RESET function √ LCD Size 40mm length x 60mm height (normal screen LCD) LCD Display (3 layers) TIME, TEMPERATURE & HUMIDITY


=====================================================
notes:

1. to know how to calibrate using the "salt test method" click here

http://soldering101.blogspot.com/2012/01/calibrating-digital-hygrometer-by-salt.html

2. ang pinaka- fast selling po namin is the HTC-1 because of its wide lcd and also because this model is the most common of all the hygrometers.

3. yun pong KT-903 & KT-905 is Jumbo size ang LCD display. so ito po ang suggested if malaki yung warehouse or room na paglalagyan.

Hanstar PX- 968 Solder Iron

Hanstar PX- 968 Solder Iron- direct Plug

- Equivalent for Goot px-601 , but this is even better because it has LCD temperature controller

- 90W , Very Powerful!

- Self Temperature Calibrating

- comes with Free Solder Iron Stand

- very powerful & low price, it will fit the budget & its performance

& power is very good.

-It is designed for Industrial Factory usage ,

but its price will also fit the budget of small repair center

Specifications:

Name	HANSTAR PX-968 Lead-free soldering iron
Power consumption	90W(Max. 143W)
Input/output voltage	Input 220V/Output 220V
Temperature range	0-450 Deg C
Tips items	900M Series
Heating element	P1324 (220V printed porcelain )

=======================

notes:

1. Instruction Manual

968 keys functions and the iron setting:

1. Power on:

Press * key, the acquiescence temperature is 350deg C.

2. Set temperature:

Press the * key for once when the power is on. The LED will display the twinkling value of set temperature, then press + or – key to adjust the temperature you need. The temperature will goes up or down 5 degC when you press once. After 5 seconds (or press the * key for twice), the iron will go back to work, the temperature setting will be finished. The value you set will be saved and won’t be affected by power on or power off.

3. Temperature calibrating:

When the power is on, and the temperature is constant, test the real temperature by thermometer (We recommend the 191 thermometer), press the * key for twice, then input the value of real temperature and press * key for once or after 5 seconds the iron will go back to work.

For example:

The set temperature is 350deg C, but the real temperature is 380deg C, then press the * key for twice, the LED will display shining 350℃, press + key and set to 380deg C (Every one press the temperature will goes up 5degC), press * key (or after 5 seconds) the iron will go back to work, then finish temperature calibrating.

4. Turn off:

Keep press the * key for 3 seconds, the iron will turn off automatic.

Troubleshooting guide:

Warning: Disconnect the power plug before servicing. Failure to do so may result in electric shock. It must be replaced by the manufacture or similarity qualified person to avoid personal injury or damage to the unit.

Problem 1: LCD no display! - Please check the fuse inside.

Problem2: LED can display, but no heating! - Please check the heating element.
