HANSTAR titanium alloy SOLDERING POT (solder bath)

HANSTAR titanium alloy SOLDERING POT (Solder Bath)

FOR ALL MODELS:

-THE BOILER OF HANSTAR LEAD-FREE SOLDER POT IS MADE FROM TITANIUM ALLOY FROM JAPAN. Even better than the leading brands!!!

- The Titanium Ally Boiler is even treated by High Temperature Treatment for more longer life

- DESIGNED FOR LEAD- FREE SOLDERING. Perfect for Dip Soldering.

- The High Temp Treated TITANIUM ALLOY SOLDER POT IS VERY TOUGH, CAN RESIST HIGH TEMPERATURE, ABRASSION, CORROSION & WITH LONG SERVICE LIFE COMPARED TO OTHER BRAND WHOSE SOLDER POT IS MADE FROM GALVANIZED IRON OR STAINLESS STEEL ONLY (stainless steel is oftentimes not suitable for lead-free soldering).
- ALL MODEL WITH HIGH POWER HEATING ELEMENT (suitable to dissolve soldering tin bar rapidly, only 10 minutes to reach 250 deg C from room temperature.

- WITH DIGITAL TEMPERATURE CONTROL FOR PRECISE TEMPERATURE CONTROL. AUTO-SLEEPING , ENERGY -EFFICIENT ,

- With malfunction alarm. When not in active operation, the temperature will lower to the set one, then if in operation, the controller software will automatically adjust the temperature rapidly .

- Many Models to choose from!


Hanstar 558

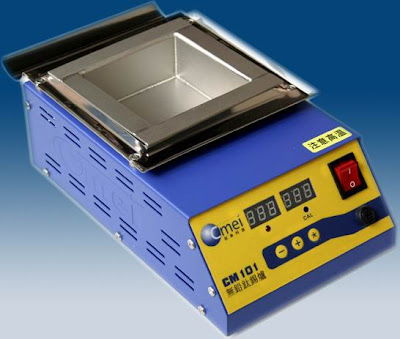

Hanstar 101


Hanstar 107


Hanstar 108

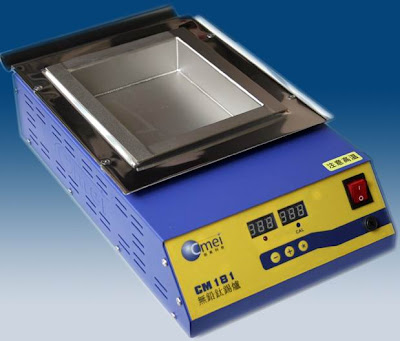

Hanstar 161













RoHS of Hanstar titanium alloy Soldering Pot



Heating element for Hanstar Soldering Pot


Advantages of our Hanstar Titanium alloy Solder Pots to your benefits:

- LOWER COST, BUT BETTER QUALITY than traditional brands.
- More Durable Titanium alloy Boiler Pot, Longer Life Span of Heating Element & Pot. 1 year Warranty for the Whole Unit including the Boiler Pot (3 months for the heating element)
- The boiler pot & the heating element are consumable parts. Though our Titanium Alloy Solder Pot Boilers are built to be durable & are expected to last for at least 2 to 3years of operation, & our Heating elements are expected to last for at least 1 year, eventually, after many years of operation & operator abuses, they will need replacement. In this regard, you can be sure replacement boiler pots & heating elements are always available from us
- We can do OEM & custom size Solder Pots in 3 to 5 days ARO.
- Always with stock for ASAP delivery.


========

Also Available: Mini-Soldering Pot Made from Stainless Steel



Mini Soldering pot
-Lower cost
-New design, mini size, easy to place and space saving.
-High precision stainless pot, long life used.
-Quick heating, shorten melting time.
-New insulation material, close off peripheral temp. effectively.

Specs: pls click to enlarge

--------------
notes:
1. Hanstar 558 = almost same size as the Hakko fx-301. Its actually a better alternative because its boiler bath is titanium alloy.Plus its price almost just half of the Hakko fx-301.

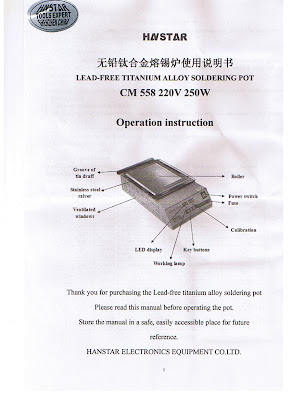

Hanstar 558 Manual:

inching= calibration key




NOTES:
1. this Hanstar Solder Pots are made in China, but definitely, this solder pots are miles ahead against competition. Pricewise: it is about 50% cheaper, Qualitywise & Durability & Performance :it is superior even against brands from Japan or USA.

2. the solder pot has 1 year warranty for the main solder pot station. The heater & the Titanium alloy boiler pot is considered consumable so it has limited warranty of 3 months only to protect the suppliers against client abuse of warranty.

But under normal operation, the long-life heater & the "high temp treated" titanium alloy boiler can last 2 to 3years & longer.


3.

AFTER REPLACEMENT OF HEATING ELEMENT, PLS DO THE CALIBRATION:

CALIBRATION INSTRUCTION:

1. PRESS LONG THE CALIBRATION BUTTON ( INCHING BUTTON) TO INITIATE THE CALIBRATION TESTING PROCESS.

The Left LCD display (WORKING), the Right LCD display ( INCHING)

Then the Left LCD display will be “SC”, & The right LCD display = “0”

-          The SC reading should be = 0.0 . if not, then adjust it using the DOWN,UP,SET buttons to become “0.0”

-          Press INCHING BUTTON again Afterwards, you can see the LOC = 0

-          Then Adjust theLOC value from  “0” to “808” , using the DOWN,UP,SET buttons

After this, press the INCHING BUTTON Again, The NEXT display will be HIAL= its value must be “601”

If the value is not “601”, then adjust it using the DOWN,UP,SET buttons to make it “601”

2. Press the INCHING Button again after you set the HIAL= “601”,

    the Next Display will be LOAL . set the value of LOAL TO “-1”

3.  Then press the INCHING button again & follow the values below

.

GLUE GUN

new product!

HANSTAR GLUE GUN- constant temperature

- Quick Heating
- Powerful 100W
- With Leakage Control Valve
-220V


features:
1. wtih proper leakage control valve, avoid the trouble of leakage.
2. with temperature sensor, avoid metamorphosizing which are cause by boil-off.
3. Use high technology heating element (PTC porcelain) induce resistance, can bear more than 3750V and 500degC! . More safe, more long life!

weight= 0.320Kg (including the packaging)

================================
notes:
1. its 100W powerful heat gun. fit for industrial usage. yung mga nabibili sa mga bookstore & common DIY stores are only 15-20W only. this Hanstar Glue Gun is 100W and is recommended for electronics assemblies factories & other factory like toy factories & accessories factories.

2. it is fit for the "big" size glue stick. dalawang size lang yata yung glue gun na nabibili sa mga bookstore. yung small & big. yung big ang fit dito sa Hanstar glue gun. big glue stick is advisable kasi its cheaper per size. you can save in the long run
