SOLDERING, ANTI-STATIC, ELECTRONIC TOOLS

Dec 23, 2018

Surface Resistance Checker VESSEL SRC-01 from Japan

Surface Resistance meter Vessel SRC-01
top quality surface resistance meter from Japan












From the floor or mat to the working bench, provides an optimal EPA environment
* Surface resistance checker that facilitates the surface resistance measurement of floor, mat, desk and chair.
* Press and hold the measurement button switch, and the measurement value appears on the display. Automatic power off function is available.
* Voltage can be switched to measure a broad range of resistance values.
* Can measure temperature/humidity at the same time as the surface resistance value.
* Supplied with proves to measure "point-to-point resistance", "resistance to ground" and "volume resistance".
* Comes with a carrying case useful to carry all necessary items for measurement.

Specs
ModelBody Size(mm)Weight(g)Applied voltageEDP No.

SRC-01

190 x 101.5 x 54.7
340
10V ( R < 1.0 x 10 to the 6 ohm or ohm/sq), 100V ( R >= 1.0 x 10 to the 6 ohm or ohm/sq)
621604
Power source : 9V DC (006 battery 1pce.)
Measurement standard : IEC61340-4-1,JIS-C2170
Measurement range : 10 cubed ohm to 10 to the 12th power (ohm/sq)
Contents
* Probe(outer diameter: about Φ66mm, about 2.3 kg) : 2
* Curled cord for a body grounding (banana plugs at both ends) : 1
* Curled cord for measurement for the point-to-point resistance and resistance to ground (banana plug/mono plug) : 2
* Crocodile clip: 1
* Large crocodile clip : 1
* Stainless plate(185mm x 100mm) : 1
* Carrying case: 1
* 9V battery (006P type: manganese dry battery) : 1

notes:
1. Surface Resistance Meter= also called as MegaOhm meter

Feb 17, 2018

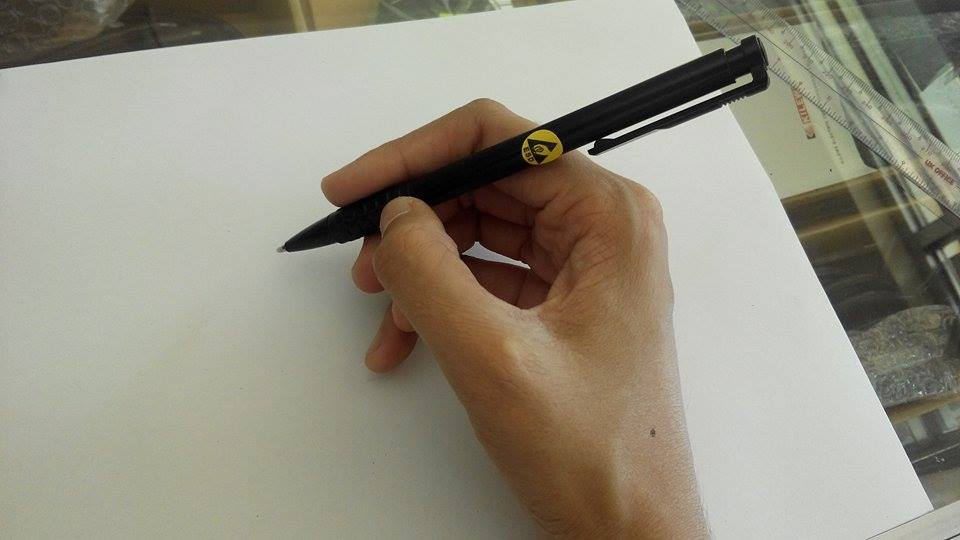

Anti-Static Pen / ESD safe Ballpen



 Anti-static Ballpen





Material:  ABS plastic
Resistance: 10E5 Ohms to 10E9 Ohms
Static Decay time: >2 seconds
Color: Black
Ink Color Available:  BLUE,  BLACK ,red


Product Specifications
Requirements (Rtt)
> 1 X 104 to < 1 X 1011 ohms ANSI/ESD S20.20
Typical values (Rtt)
109 ohms
Test standard
ANSI/ESD S11.11
ANSI/ESD DS11.12
Point
Fine
