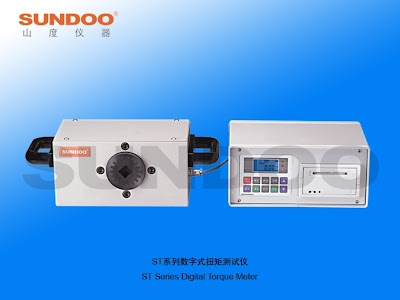

Sundoo ST Series

pls click the photo , then click the zoom




cross reference :

Hios HP-10 = Sundoo ST-1
Hios HP-50 = Sundoo ST-5
Hios HP-100 = Sundoo ST-10

notes:
Torquemeter Philippines

1. its price is a lot cheaper than the original Hios Torquemeter but its quality is also very good, also its precision & accuracy is the same or even exceeds original Hios.

2. its price is just a little higher than the "copy Hios HP series" so no need to buy the "copy Hios". Sundoo ST series is highly recommended.

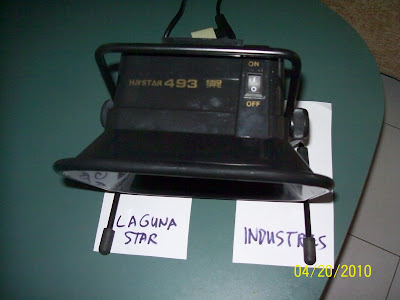

SMOKE ABSORBER- HANSTAR 493

SMOKE ABSORBER HANSTAR 493 -ESD safe
Features:
- ESD safe fan driven smoke absorber with replaceable activated carbon filter
- Can be used free standing or bench mounted with optional arm
- Supplied with 3 activated carbon filters

•Removes toxic gas quickly and efficiently to safeguard health of workers.
•Angle may be adjusted at will and easy to place and move.
•Low noise and long service life fan; easy and quick to replace filter.
•Filters are made of special urethane foam plastic combined with finely processed activated carbon, highly absorbs fume and soldering flux.
•Anti-electrostatic types to meet sensitive operation environment.

Model No.: 493
Frequency: 50Hz / 60 Hz
Power Consumption: 16W
Absorption Capacity (w / Filter) : 0.93m3 / min.
Accessories Activated Carbon Filter: (3 pcs)
Outer Dimensions : 220(W) x 270 (W) x 168 (D) mm
Weight: Approx. 1.5kg

cross ref : Hakko 493, Quick 493 , Pace FX50 ESD-Safe Smoke Absorber, Elet 493

====================================
Activated-Carbon Filter (493-10)
Size: 130 x 130 x 10mm
Amount of Activated-Carbon per one filter: 7g
Max. Absorbing weight of noxious components per one filter: 2g

Optional Long Arm

smoke absorber carbon filter 493-10

activated carbon filter for smoke absorber Hanstar 493.
also fit with other brands' 493 like Hakko, Elet, Quick,etc.

actual size of around 129mm x129mm x 10 mm
(yung thickness sometimes varies due to shipping, but its 9mm-10mm. it will never go less than 9 mm, for example= 9.1mm, 9.5mm,10mm, but usually its 10mm)

(you can cut it if you have smaller size of absorber model)

product code = 493-10, 493-CF

ESD brush Paint brush style GJ 920 v2

ESD brush GJ 920v2 paintbrush style

Lagunastar SKU= GJ-920v2

crorss reference (PN of other suppliers) = ABB-503,ABB-306

conversion of Torque units

What is kilogram force centimeter

Kilogram force centimeter is a torque measurement unit

kilogram force centimeter is a non-SI (non-System International) measurement unit of torque.

1 kilogram force centimeter = 0.0980665003 newton meter
1 kgf-cm = 0.0980665003 N⋅m

1 kilogram force centimeter = 0.0723301387 pound force foot
1 kgf-cm = 0.0723301387 lbf-ft

source:
http://www.aqua-calc.com/what-is/torque/kilogram-force-centimeter

HANSTAR 161 SOLDERING POT

Hanstar 161 soldering bath (soldering pot) - with titanium alloy boiler pot
