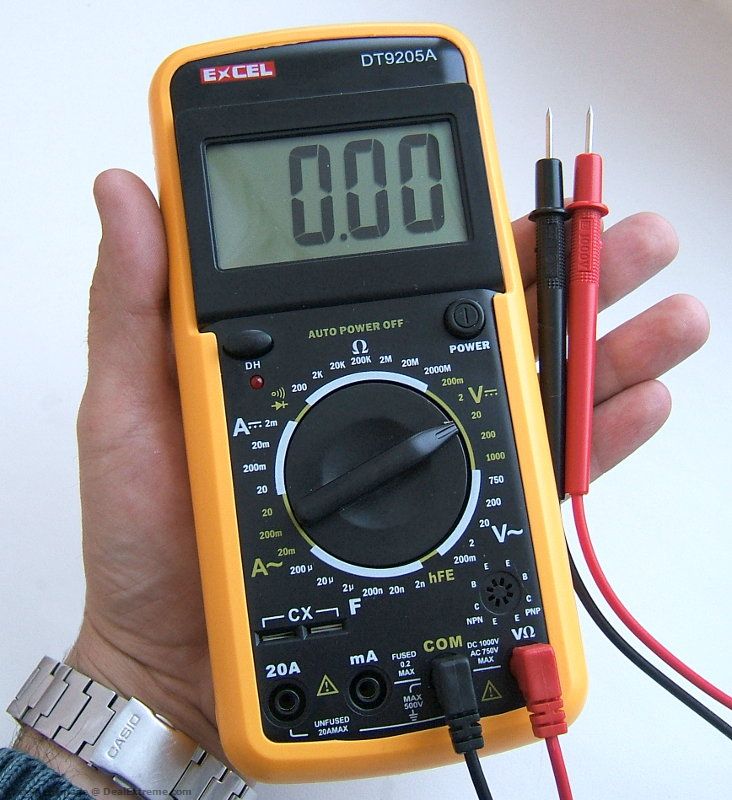

Digital Multimeter Excel DT9205A

Digital Multimeter EXCEL DT9205A                                                                                                       Digital multimeter is a great tool for electricians, contractors, and other such professions as well as being a handy tool to have around the house for home repair.

• Large LCD display with high accuracy
• Measure AC/ DC voltage, AC/ DC current, resistance, capacitance and diode
• Stable performance, high reliability ,  Max LCD display: 1999  ,  Operating condition: 0 to 40 deg C
• Power Supply:9V battery  ,  Dimension:186mm*86mm*33mm  ,  Weight: 380g
• Comes with one black test lead and one red test lead
• LCD display panel angle selection: with the button in the top case, the display panel can be rotated to the best angle
•

• Function	Range	Accuracy	Resolution
  DC Vol.	200mV	+-(0.5%+3d)	0.1mV
  	2v	+-(0.8%+2d)	1mV
  	20v		10mV
  	200v		0.1V
  	1000v	+-(0.8%+4d)	0.5V
  AC Vol.	200mV	+-(1.2%+5d)	0.1mV
  	2V	+-(1.0%+5d)	1mV
  	20V		10mV
  	200V		0.1V
  	750V	+-(1.2%+5d)	0.375V
  AC Amp.	2mA	+-(2.0%+3d)	0.001mA
  	20mA		0.01mA
  	200mA	+-(2.0%+5d)	0.1mA
  	20A	+-(3.0%+10d)	10mA
  DC Amp.	2mA	+-(1.0%+5d)	0.001mA
  	20mA		0.01mA
  	200mA		0.1mA
  	20A	+-(2.0%+10d)	10mA
  Resistance	200Ω	+-(1.0%+10d)	0.1Ω
  	2KΩ	+-(1.0%+4d)	1Ω
  	20KΩ		10Ω
  	200KΩ		100Ω
  	2MΩ		1kΩ
  	20MΩ	+-(1.0%+5d)	10kΩ
  	200MΩ	+-(5.0%+20d)	100kΩ
  Capacitance	20nF	+-(4.0%+5d)	0.01nF
  	200nF		0.1nF
  	2µF		1nF
  	20µF		10nF
  	200µF	+-(5.0%+10d)	100nF
  Diode	Forward current:1mA(Approx); Reverse voltage:2.8V
