May 15, 2016

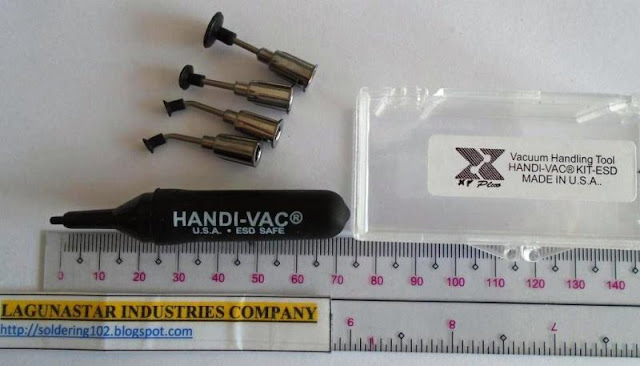

Vacuum Pick-up Pen (ESD safe) HANDI-VAC Kit ESD

Vacuum Pick-up Pen (ESD safe)

HANDI-VAC Kit ESD
Lagunastar PN. HANDI-VAC-K-ESD

HANDI-VAC HANDY ESD SAFE PEN
Handling Vacuum Tool with 4 Interchangeable Heads



Ideal tool when working with small items, such as electronics and other craft work that requires handling small items.The Handi-Vac holds small parts securely - no more reaching! Similar to the Pen-Vac, it's perfect for surface mount chips, ICS, transistors, and small semiconductors. ESD safe. Suction is activated by pressing bulb, no batteries or other power needed. Tips change easily and can even be connected directly to the tool
Products Features:
  • Vacuum Handling Tool, easily handles ESD (Electro Static Device) safely.
  • Handling Pen Tool, selection of four probes with vacuum cups included. Includes, one 1/4 inch cup, a 3/8 inch cup and two 1/8 inch cups.
  • Easily handles up to 3-ounce objects.
  • Safe Vacuum Pen is perfect for surface mount chips, ICS, transistors, and small semiconductors.
  • Totally self-contained vacuum.
  • No batteries to replace.
  • Tips and headers change easily and can even be connected directly to the tool.
  • Size: 7.5 cm in length (without the tip) 9.5cm if with the tip
Vacuum cup rubber is ESD safe.

---
notes:
1. Simple operations = Pindutin lang to suck or pickup yung SMD components, then pindutin ulit para marelease yung SMD components . no battery needed, no station needed.

2. more photos:

























3. Version 2




Vacuum Pick-up Pen (ESD safe) AKIMICHI MT-668 ESD

Vacuum Pick-up Pen (ESD safe)
AKIMICHI MT-668 ESD
Lagunastar SKU = AKI-MT-668-ESD






Product description:

1. MT-668 antistatic vacuum pen for small and affordable suck pen, with four with suction written, rubber pen, accord with the body anti-static specifications, the body length is 90 mm pen.

2. Through the manual vacuum pen, electronic components and pick the production special convenient, the operation is simple, is the good assistant of the job!!!!!

3. Suck in the pen with four cups (3 m * 2, 7 mm * 1, 10 mm * 1), four suck needle.

4. The volume is small, but very strong suction.

5. MT-668 air really strong attraction static

---
Notes:
1. AKIMICHI MT-668 Regular (not ESD safe & lower price) also available

Nov 15, 2015

PORTABLE VACUUM PICK-UP TOOLS EDSYN LP200 (made in USA)

SoldaVac/ Pixter Lifter by Pen-Vac Portable Vacuum Pick-Up Tool

EDSYN LP200

Lagunastar SKU= ED-LP200


Edsyn LP200

The LP200 is small, lightweight and will handle most portable lifting applications

Pixter by Pen-Vac Portable Vacuum Pick-Up Tool includes LN250, LN260 and LN270 Angled Lifting Needles.
  • ESD safe
  • Lightweight
  • Economical
  • Length: 5" (without needle)
  • Comes standard with LN251, LN260, and LN270 needles and will accept almost all needles and suction cups
  • Lifting capacity: 500 grams
Product Description
This 3-ounce pen sized tool is ideal for picking, placing and removing flat components up to 500 grams and accepts wide variety of needles and suction cups. Comes complete with LN250, small angled lifting needle with 1/8" static-safe silicone suction cup, LN260, angled lifting needle with 1/4" static-safe silicone suction cup and LN270, large angled lifting needle with 3/8" static-safe silicone suction cup

 Package Contents:
1 - Pick-Up Tool
1 - LN250
1 - LN260
1 - LN270 Angled Lifting Needles.

Includes: LN250, LN260, LN270 Angled Lifting Needles and LN251, LN261, LN271 Straight Lifting Needles

Type: Portable

---
notes:


1. more photos








PORTABLE VACUUM PICK-UP TOOLS EDSYN LP20 (made in USA)

PIXTER Portable Vacuum Handling Tool

Product Code: EDSYN LP20








This is the newest addition to our line of portable lifting tools. Features a small yet powerful vacuum pick up system with tweezer like handling for compact areas. Also ESD safe.

  • ESD safe
  • Economical
  • Powerful vacuum pick up system
  • Comes standard with LN251 and LN260 needles and will accept almost all needles and suction cups

The Edsyn LP20 is an ESD-safe portable vacuum handling tool with tweezer-like handling for compact areas.
1 set of Edsyn LP20 Includes:
  • (1) LN251 straight lifting needle with suction cup
  • (1) LN260 angled lifting needle with suction cup

Feb 6, 2009

Hanstar 939 VACUUM PICK-UP PEN- ESD







Hanstar 939 VACUUM PICK-UP PEN

ESD Safe, Vacuum Pick Up Pen...
-Push Button Vacuum Pen holds the SMD package to the suction head.
-For picking and placing SMD packages
-No external air or power required
-Finger operated pump means it is ready for immediate use
-Hand held vacuum tool providing anti-static protection for pickup of delicate components with reduced risk of damage
-Slim and lightweight for easy access and comfortable, controlled use

-Includes Changeable Suction Heads...large size for 40g, medium size for 18g, and small size for 3g
-Alternative to Hakko 393 Vacuum Pick-up Tool
-Parts can be used to repair or replace worn-out of Hakko 392,393,394 pick-up tools (i.e. bent nozzles, pad, etc.)
-Widely used in China, Europe, & USA


----------------------------------------------
notes:

oks siya,convenient gamitin.. oks ang din ang quality, mura pa.
simple operation = Pindutin ang Black button para isuck o mapick-up yung SMD components,
then Pindutin ulit para irelease yung SMD components.

no battery or station required. widely used

1. also known as : Vacuum Sucking Pen
2. cross reference : same as FFQ 939, Aoyue 939
3. it has 3 rubber nozzles :

diameter 10mm = capacity is 40g
diameter 8 mm = capacity is 18g
diameter 3.5mm = capacity is 3.5g

its a low cost , finger-powered basic vacuum pen. its basic so it has only 3 nozzles. but these model is very widely used because of its cheapness, easy-to-use & basic features.
