Jun 10, 2013

DIGITAL WIND METER (ANEMOMETER)


DIGITAL WIND METER (ANEMOMETER)

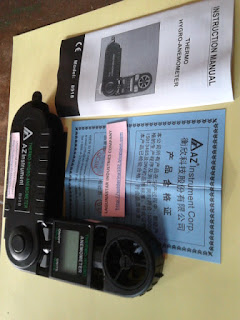

1. AZ Instrument AZ-8908 Anemometer – Pocket size










  • Small, compact design
  • Display air velocity and temperature or temperature and windchill
  • Wind speed units selectable
  • Water-resistant and shock proof   *  Tripod mountable

8908
8918
Wind speed range
0.5-44.7M/H, 60-3937FT/M, 0.4-38.8KNT, 1.1-20.0M/S, 0.7-72.0KMH, 1-8BF
Wind speed accuracy
+/-5% of rdg. or last significant digit(whichever is greater)
Air temp.range
-15 - 50.0
Air temp.resolution
0.1/
Air temp.accuracy
+/-1
Air RH% range
N/A
5%RH-95%RH
Air RH% resolution
N/A
0.1%RH
Air RH% accruacy
N/A
+/-3%RH
Wind speed response time
averaging every 2 seconds
Temp. response time
60 seconds(typical)
Air RH% response time
N/A
60 seconds(typical)
LCD update
every second
Windchill display
YES
YES
Dew point temp. display
N/A
YES
LCD size
16(H) x 28(W) mm
Operating temp.
-15-50
Operating RH%
Humidity<80 span="">
Storage temp.
-10-50
Storage RH%
Humidity<90 span="">
Dimension(mm)
140 x 45 x 25
235 x 45 x 25
Weight
90g
Battery
CR2032 x 1pc
Standard Package
Meter/Battery/Manual/Strap/Paper box

=================================================================

2. Anemometer GM8908






BENETECH Digital Anemometer GM8908
*Measures =  Air velocity, Air temperature
Product Features:
Pocket Size (very mini)
Wind / air temperature
With Max / Average measurement
Wind speed measuring range: 0 to 30 m / s; Accuracy: ± 5%,
Air temperature measuring range: -10 to 45 C; Accuracy: ± 2
,
Wind speed units: m / s, Ft / min, Knots, Km / hr, Mph
General features and specifications:
Temperature measurement range: -10
~ 45
Wind speed measuring range: 0.3 ~ 30m / s
Temperature measurement error: ± 2

Wind speed measurement error: ± 5% ± 0.1dgts
Wind speed unit selection: M / s, Ft / min, Knots, Km / hr, Mph
Resolution: 0.1m / s
Wind speed / air flow test conversion: √
/ temperature unit conversion: √
Auto / Manual Off Function: √
Backlight display function: √
Maximum / minimum wind speed measurements: √
Average wind speed and the current wind speed measurements: √
Packaging Information:
Power: CR2032 3V battery
Net Weight: 52.1 grams
Size: 105 * 40 * 15mm
Packing: Blister packing
GM8908 LCD Digital Wind Speed Temperature Measure Gauge Anemometer
· Air velocity and temperature measurement
· Ideal tool for windsurfing, sailing, fishing, kite flying and mountaineering
· Also use it for industrial and home purpose such as measuring wind speed and temperature of CPU computer fans, air blower
· LED back light design for operation under poor illumination
· Wind chill indication and Beaufort scale
-----------------------------------------------------------------------------------------

3. Anemometer GM816








BENETECH GM 816
-POCKET SIZE
*Measurement items: Air velocity, Air temperature
*Measurement range:
----Air velocity: 0~30m/s, 0~90km/h, 0~5860ft/min, 0~55knots, 0~65mph (± 5%)
----Air temperature: -10~45º C, 14~113º F (± 2º C)
*Resolution: 0.2º C, 0.2m/s
*Display: LCD
*Sensor:
----Air velocity sensor: Plastic impeller, magnetic induction
----Temperature sensor: NTC thermometer
*Low battery indication: Yes
*Auto power shut off: 14 minutes without any operation
*Backlight: 12 seconds active by press any key
*MAX/MIN/AVG reading

*Packing: Blister+Card
*Power: CR2032 -  3.0V
*Dimension: 105*40*15mm
*Net weight: 52g (including battery)


· Air velocity and temperature measurement
· Ideal tool for windsurfing, sailing, fishing, kite flying and mountaineering
· Also use it for industrial and home purpose such as measuring wind speed and temperature of CPU computer fans, air blower
· LED back light design for operation under poor illumination
· Wind chill indication and Beaufort scale

* Do micro spot measurements
  * Mini and light weight   * Non-slip Rubber Protection Cover to protect the meter
* Simultaneous measure and display wind speed & temperature
* Multiple SI units: M/s, km/h, fpm, mph, or knots
* Wind speed is also displayed in a Beaufort wind scale bar graph
* Display options in wind speed mode are current wind speed, maximum wind speed since power-on, and average wind speed since power-on
* Wind chill is displayed in the selected temperature unit
* Temperature indication is selectable for either ° F or ° C
* Built-in rotating vane sensor and backlight with auto-off
* Case is weather resistant (but not submersible)
* Ultra light impeller is mounted in jewel (sapphire) bearing for precision, wide range of speeds and low startup speed
* Guaranteed quick response & accurate readings, no guessing errors
* Auto/Manual power-off with low battery warning
* Detachable neck lanyard and battery are included
* Powered by 1 CR2032 (3V) lithium battery, which is included and preinstalled
* With ISO9001 and UKAS approval
* With CE marking, approved by European Directives for health & safety requirements

----------------------------------------------------------------------------------------------

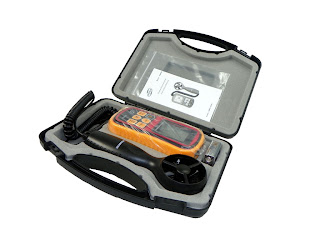

4.  Anemometer GM8901








FULL SIZE
*Measuring Items: Air Velocity & Air Temperature
*Measuring range:
----Air Velocity: 0~45 m/s, 0~140 km/hr, 0~8800 Ft/min, 0~88Knots, 0~100 mph (Accuracy: ± 3%)
----Air Temperature: 0~45ºC, 32~113ºF (Accuracy± 2ºC)
*Resolution: 0.2ºC, 0.1m/s
*Unit of Velocity: m/s, Ft/min, Knots, Km/hr, Mph
*ºC/ºF Selection
*Backlight display
*Max/Min reading (Air velocity)
*Average/Current reading (Air velocity)
*Data hold
*Low battery indication
*Manual/Auto power shut off (in 14minutes without any operation

*Packing method: PP box + Gift box
*Power supply: 9V battery *1pcs
*Dimension:
----Main unit: 145*72*35mm
----Vane: 172*65*29mm
*Weight: 275g (Including battery)



Features:

* Simultaneous measure and display Air Velocity & Temperature
* Digital Thermometer with range 0 ~ 45 ° C (32 ~ 113 ° F)
* Fast Air Speed measure range: 0 ~ 45 m/s (0 ~ 8800 ft/min)
* Multiple SI units: M/s, km/h, ft/min, mph or knots
* Wind speed is also displayed in a Beaufort wind scale bar graph
* Display options in wind speed mode are current wind speed, maximum and minimum wind speed and average wind speed
* Wind chill is displayed in the selected temperature unit
* Switchable between ° C  or ° F
* Built-in rotating vane sensor and Backlight
* Guaranteed quick response & accurate readings, no guessing errors
* Auto/Manual power-off with low battery warning
